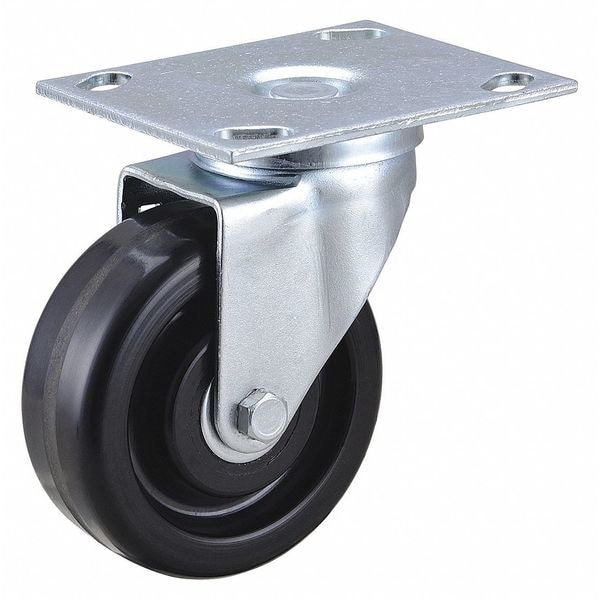

Zoro Select NSF-Listed Plate Caster, 4" Wheel Dia, 350 lb. 406P68 - main

NSF-Listed Plate Caster, 4" Wheel Dia, 350 lb.

  • Mfr # 406P68

  • Zoro # G6593881

product price:  $13.99
/ea

Key Features

Number of Wheels
1
Caster Frame Material
Steel
Frame Finish
Zinc Plated
Inside Bolt Hole Spacing
3 in x 3 in
Includes
Dust Cover
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
406P68
Zoro #
G6593881
UPC #
-
Country of Origin
China

Dimensions

Overall Height
5-3/16in
Wheel Dia.
4 in
Wheel Width
1 1/2 in
Mounting Bolt Dia.
7/16 in
Swivel Radius
3 3/8 in
Mounting Plate Size
3 3/4 in x 4 1/2 in
Mounting Height
5 3/16 in
Mounting Plate Thickness
5/32in

Details

Number of Wheels
1
Caster Sub-Type
Swivel
Caster Frame Material
Steel
Frame Finish
Zinc Plated
Item
Plate Caster
Inside Bolt Hole Spacing
3 in x 3 in
Includes
Dust Cover
Wheel Color
Black
Caster Brake Included
No
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Non-Marking
Yes
Replacement Wheel
33H621
Core Color
Black
Caster Plate Hole Pattern
B
Thread Guards
No
Standards
NSF Listed
Extended Lead
No
Load Rating
350 lb
Application
Food Service Racks and Cases, Hospital Equipment, Hotel Equipment, Institutional Equipment, Laundry Trucks, Office Equipment, Stock Carts, Store Fixtures, Utility Carts
Caster Temp. Range Available
Yes
Caster Brake Type
No Brake
Swivel Raceway Type
Double Ball
Number of Mounting Holes
4
Includes Thread Guards
Yes
Wheel/Tread Hardness Rating
Hard
Swivel Lock Type
No Lock Included
Load Rating Range
300 to 999 lb
Wheel Core Material
Phenolic
Swivel Construction
Kingpin
Wheel Bearing Type
Roller
Tread Shape
Standard
Wheel/Tread Material
Phenolic
Wheel/Tread Color
Black
Wheel Hardness Rating
85 Shore D
Load Capacity - Maximum
350 lb
Operating Temperature - Maximum
250 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature Range
-40 Degrees to 250 Degrees F

Description

Swivel, Plate Caster, Load Rating 350 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 1 1/2 in, Wheel/Tread Material Phenolic, Wheel Core Material Phenolic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
