  6. NSF-Listed Plate Caster, 4" Wheel Dia, 350 lb.

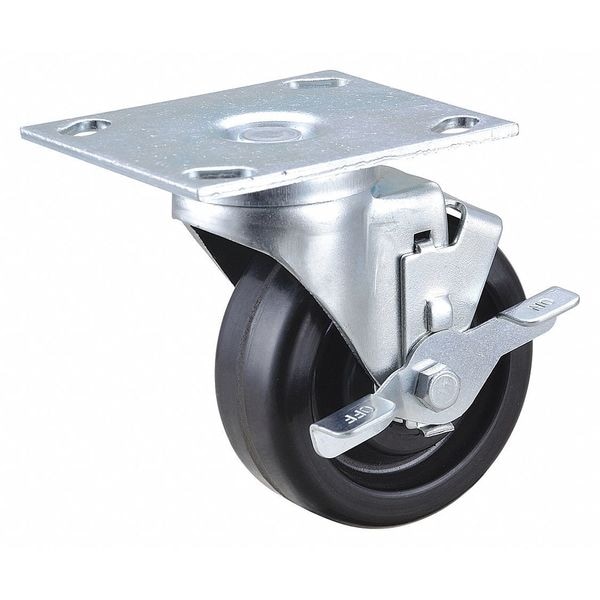

Zoro Select NSF-Listed Plate Caster, 4" Wheel Dia, 350 lb. 406P70 - main

NSF-Listed Plate Caster, 4" Wheel Dia, 350 lb.

  • Mfr # 406P70

  • Zoro # G3700888

product price:  $29.65
/ea

Key Features

Inside Bolt Hole Spacing
3 in x 3 in
Caster Stem Type
No Stem/Plate Included
Wheel Dia.
4 in
Core Color
Black
Application
Food Service Racks and Cases, Hospital Equipment, Hotel Equipment, Institutional Equipment, Laundry Trucks, Office Equipment, Stock Carts, Store Fixtures, Utility Carts
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
406P70
Zoro #
G3700888
UPC #
190735904985
Country of Origin
China

Dimensions

Wheel Dia.
4 in
Swivel Radius
3 3/8 in
Overall Height
5-3/16in
Stem Dia.
No Stem
Mounting Bolt Dia.
7/16 in
Wheel Width
1 1/2 in
Mounting Plate Size
3 3/4 in x 4 1/2 in
Mounting Height
5 3/16 in
Mounting Plate Thickness
5/32in

Details

Inside Bolt Hole Spacing
3 in x 3 in
Caster Stem Type
No Stem/Plate Included
Core Color
Black
Application
Food Service Racks and Cases, Hospital Equipment, Hotel Equipment, Institutional Equipment, Laundry Trucks, Office Equipment, Stock Carts, Store Fixtures, Utility Carts
Item
Plate Caster
Caster Brake Type
Side Brake
Caster Temp. Range Available
Yes
Non-Marking
Yes
Caster Sub-Type
Swivel
Includes
Dust Cover
Frame Finish
Zinc Plated
Replacement Wheel
33H685
Thread Guards
No
Load Rating
350 lb
Standards
NSF Listed
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Extended Lead
No
Wheel Color
Black
Caster Plate Hole Pattern
B
Caster Brake Included
Yes
Caster Frame Material
Steel
Number of Wheels
1
Wheel Core Material
Phenolic
Load Rating Range
300 to 999 lb
Swivel Lock Type
Swivel Lock
Wheel/Tread Hardness Rating
Hard
Number of Mounting Holes
4
Swivel Construction
Kingpin
Tread Shape
Standard
Swivel Raceway Type
Double Ball
Includes Thread Guards
Yes
Wheel Bearing Type
Roller
Wheel/Tread Material
Phenolic
Wheel/Tread Color
Black
Load Capacity - Maximum
350 lb
Wheel Hardness Rating
85 shore D
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature Range
-40 Degrees to 250 Degrees F
Operating Temperature - Maximum
250 Degrees F

Description

Swivel, Plate Caster, Load Rating 350 lb, Swivel Lock Type Swivel Lock, Wheel Dia. 4 in, Wheel Width 1 1/2 in, Wheel/Tread Material Phenolic, Wheel Core Material Phenolic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Side Brake, Tread Shape Standard
