  6. NSF-Listed Plate Caster, 450 lb. Load Rating, Swivel

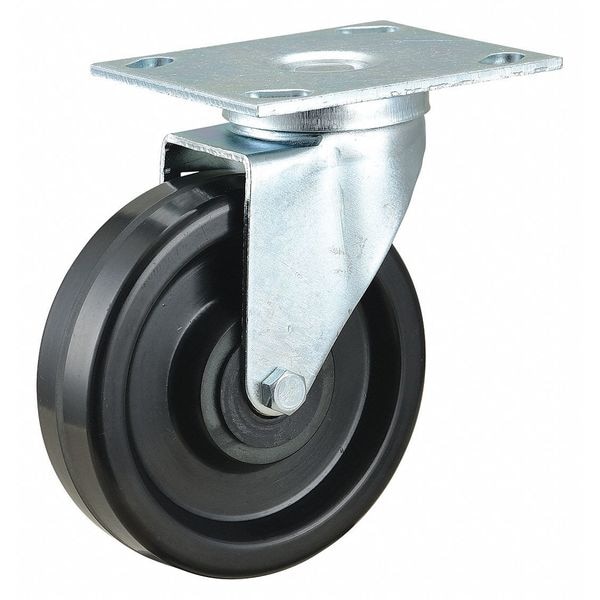

Zoro Select NSF-Listed Plate Caster, 450 lb. Load Rating, Swivel 400K73 - main

NSF-Listed Plate Caster, 450 lb. Load Rating, Swivel

  • Mfr # 400K73

  • Zoro # G4016253

product price:  $10.65
/ea

Key Features

Caster Sub-Type
Swivel
Wheel/Tread Material
Phenolic
Caster Brake Type
No Brake
Wheel Dia.
5 in
Mounting Height
6 3/16 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
400K73
Zoro #
G4016253
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
5 in
Mounting Height
6 3/16 in
Mounting Plate Size
3 3/4 in x 4 1/2 in
Mounting Plate Thickness
5/32in
Mounting Bolt Dia.
3/8 in
Wheel Width
1 1/2 in
Overall Height
6-3/16in
Swivel Radius
3 7/8 in
Stem Dia.
No Stem

Details

Item
Plate Caster
Caster Sub-Type
Swivel
Wheel/Tread Material
Phenolic
Caster Brake Type
No Brake
Wheel Bearing Type
Roller
Wheel/Tread Color
Black
Wheel Hardness Rating
85 Shore D
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Black
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Inside Bolt Hole Spacing
3 in x 3 in
Caster Plate Hole Pattern
B
Caster Brake Included
No
Load Rating
450 lb
Frame Finish
Zinc Plated
Wheel Color
Black
Caster Temp. Range Available
Yes
Replacement Wheel
33H622
Extended Lead
No
Standards
NSF Listed
Caster Stem Type
No Stem/Plate Included
Thread Guards
No
Application
General Purpose
Includes Thread Guards
No
Load Rating Range
300 to 999 lb
Swivel Lock Type
No Lock Included
Wheel/Tread Hardness Rating
Hard
Swivel Raceway Type
Double Ball
Swivel Construction
Kingpin
Wheel Core Material
Phenolic
Load Capacity - Maximum
450 lb
Operating Temperature Range
-40 Degrees to 250 Degrees F
Operating Temperature - Maximum
250 Degrees F
Operating Temperature - Minimum
-40 Degrees F

Description

Swivel, Plate Caster, Load Rating 450 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 1 1/2 in, Wheel/Tread Material Phenolic, Wheel Core Material Phenolic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
