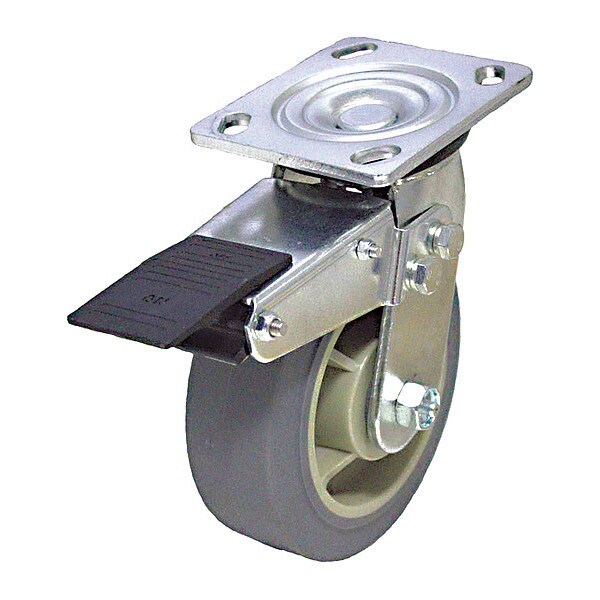

NSF-Listed Plate Caster, 500 lb. Ld Rating, Roller

  • Mfr # P21S-PRP060R-14-TB

  • Zoro # G7279233

product price:
$
56.79
/ea

Key Features

Overall Height
7-1/2"
Swivel Construction
Kingpin
Mounting Height
7 1/2 in
Includes Thread Guards
No
Mounting Plate Size
4in x 4-1/2in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P21S-PRP060R-14-TB
Zoro #
G7279233
UPC #
-
Country of Origin
China

Dimensions

Overall Height
7-1/2"
Mounting Height
7 1/2 in
Mounting Plate Size
4in x 4-1/2in
Wheel Width
2 in
Swivel Radius
6 in
Mounting Bolt Dia.
3/8 in
Wheel Dia.
6 in
Inside Slot Spacing - Length
3 in
Overall Wheel Width
2 in
Bolt Hole Spacing - Length
2.625 in
Outside Slot Spacing - Width
3 in
Mounting Plate Thickness
7/32 in
Outside Slot Spacing - Length
3.625 in
Mounting Plate Width
4 in
Mounting Plate Length
4 1/2 in
For Axle Dia.
1/2 in
Inside Slot Spacing - Width
2.625 in

Details

Swivel Construction
Kingpin
Includes Thread Guards
No
Swivel Lock Type
Total Lock
Load Rating Range
Light-Medium Duty
Tread Shape
Standard
Wheel/Tread Hardness Rating
Firm
Wheel Bearing Type
Roller
Swivel Raceway Type
Double Ball
Number of Mounting Holes
4
Wheel Core Material
Polyolefin
Wheel/Tread Material
Rubber
Wheel/Tread Color
Gray
Caster Brake Type
Total Lock
Caster Mounting Type
Plate
Tread Color
Gray
Inside Bolt Hole Spacing
3 in x 3 in
Thread Guards
No
Extended Lead
No
Standards
ANSI ICWM, NSF Listed
Core Color
Beige
Caster Frame Material
Steel
Item
Plate Caster
Features
Floor Protective, Noise Reduction
Number of Wheels
1
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Sub-Type
Swivel
Caster Plate Hole Pattern
B
Caster Temp. Range Available
Yes
Resistant To
High Chemical Resistance To Many Aggressive Substances
ESD Conductive
No
Application
Dollies, Floor Trucks, Material Handling Containers, Platform Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Load Capacity
500 lb
Caster Brake Included
Yes
Tread
Standard
Load Rating
500 lb
Series
P21 Series
System of Measurement
Inch
Includes
Total-Lock
Non-Marking
Yes
Wheel Color
Gray
Replacement Wheel
Mfr. No. P-RP-060X020/050R
Frame Finish
Zinc Plated
Compatible With
P-RP-060X020/050R
Load Capacity - Maximum
500 lb
Wheel Hardness Rating
65 Shore A
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Brake Location
Rear
Wheel Core Type
Solid
Caster Features
Debris-Resistant
Wheel Bearing Material
Steel
Operating Temperature Range
-4 Degrees To 140 Degrees F
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature - Maximum
180 Degrees F

Description

Swivel, Plate Caster, Load Rating 500 lb, Swivel Lock Type Total Lock, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
