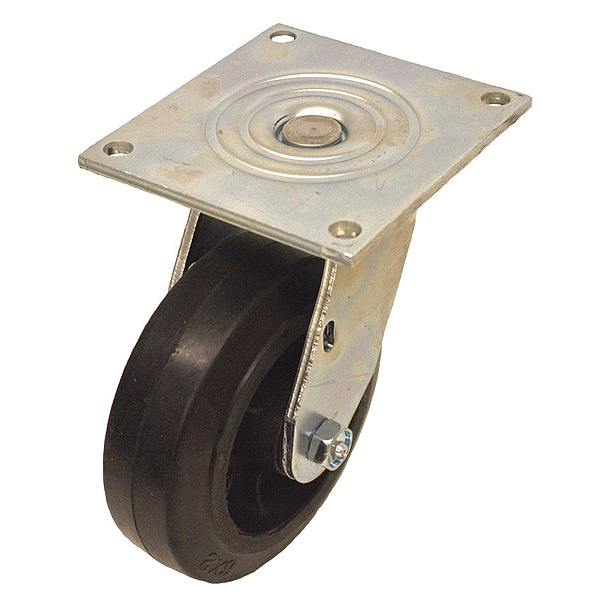

NSF-Listed Plate Caster, 600 lb. Ld Rating, Roller

  • Mfr # P21S-RY080R-15
  • Zoro # G7278387
product price:
$
49.49
/ea

Key Features

Overall Height
9-1/2"
Mounting Bolt Dia.
3/8 in
Application
Dollies, Floor Trucks, Material Handling Containers, Platform Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Replacement Wheel
Mfr. No. P-RY-080X020/050R
Caster Brake Included
No
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P21S-RY080R-15
Zoro #
G7278387
UPC #
-
Country of Origin
China

Dimensions

Overall Height
9-1/2"
Mounting Bolt Dia.
3/8 in
Swivel Radius
6 3/4 in
Wheel Dia.
8 in
Wheel Width
2 in
Mounting Height
9 1/2 in
Mounting Plate Size
5in x 5-1/2in
Bolt Hole Spacing - Width
4.5 in
Overall Wheel Width
2 in
Mounting Plate Thickness
7/32 in
For Axle Dia.
1/2 in
Mounting Plate Length
5 in
Bolt Hole Spacing - Length
4.125 in
Fits Chest Size
Noise Reduction

Details

Application
Dollies, Floor Trucks, Material Handling Containers, Platform Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Replacement Wheel
Mfr. No. P-RY-080X020/050R
Caster Brake Included
No
Extended Lead
No
Thread Guards
No
Caster Plate Hole Pattern
D
Caster Temp. Range Available
Yes
Frame Finish
Zinc Plated
Load Rating
600 lb
Outside Bolt Hole Spacing
4-1/8 in x 4-1/2 in
Standards
ANSI ICWM, NSF Listed
Inside Bolt Hole Spacing
4-1/8 in x 4-1/2 in
Caster Sub-Type
Swivel
Caster Frame Material
Steel
Core Color
Black
Number of Wheels
1
Wheel Color
Black
Non-Marking
No
Item
Plate Caster
Features
Noise Reduction
Caster Brake Type
No Brake
Swivel Construction
Kingpin
Swivel Raceway Type
Double Ball
Wheel Bearing Type
Roller
Wheel Core Material
Iron
Load Rating Range
Light-Medium Duty
Swivel Lock Type
No Lock Included
Tread Shape
Standard
Includes Thread Guards
No
Number of Mounting Holes
4
Wheel/Tread Hardness Rating
Soft
Wheel/Tread Material
Rubber
Wheel/Tread Color
Black
System of Measurement
Inch
Series
P21 Series
Resistant To
Chemical Resistance To Many Aggressive Substances, Except Oils
Caster Mounting Type
Plate
Load Capacity
600 lb
Accessories
Optional: P-DL21-15 (Directional Lock)
Tread
Standard
Tread Color
Black
ESD Conductive
No
Wheel Hardness Rating
85 Shore A
Load Capacity - Maximum
600 lb
Compatible With
P-RY-080X020/050R
Caster Features
Corrosion-Resistant
Mounting Plate Shape
Rectangle
Wheel Core Type
Spoke
Wheel Bearing Material
Steel
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel
Mounting Hole Type
Hole
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature - Maximum
180 Degrees F
Operating Temperature Range
-40 Degrees To 180 Degrees F

Description

Swivel, Plate Caster, Load Rating 600 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Rubber, Wheel Core Material Iron, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
