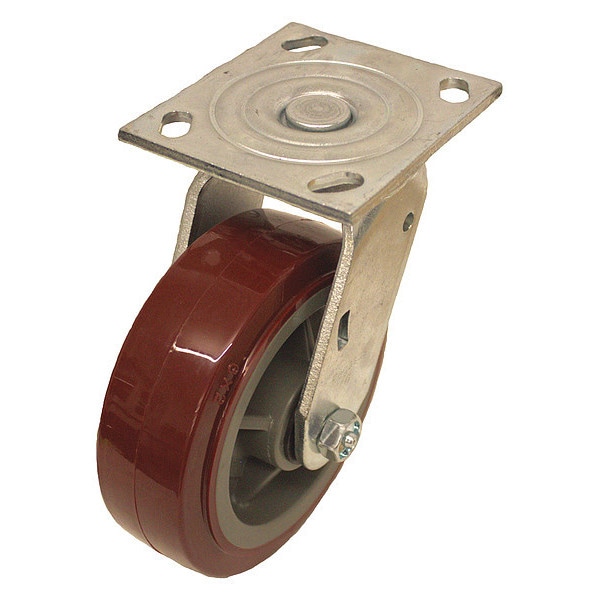

NSF-Listed Plate Caster, 660 lb. Ld Rating, Roller

  • Mfr # P21S-URP050R-14
  • Zoro # G7279242
product price:
$
36.79
/ea

Key Features

Wheel Width
2 in
Non-Marking
Yes
Swivel Radius
4 1/4 in
Number of Wheels
1
Standards
ANSI ICWM, NSF Listed
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P21S-URP050R-14
Zoro #
G7279242
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
2 in
Swivel Radius
4 1/4 in
Mounting Bolt Dia.
3/8 in
Overall Height
6-1/2"
Wheel Dia.
5 in
Mounting Height
6 1/2 in
Mounting Plate Size
4in x 4-1/2in
Overall Wheel Width
2 in
Outside Slot Spacing - Length
3.625 in
Inside Slot Spacing - Length
3 in
Inside Slot Spacing - Width
2.625 in
For Axle Dia.
1/2 in
Outside Slot Spacing - Width
3 in
Mounting Plate Thickness
7/32 in
Mounting Plate Length
4 in
Fits Chest Size
Floor Protective

Details

Non-Marking
Yes
Number of Wheels
1
Standards
ANSI ICWM, NSF Listed
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Application
Dollies, Floor Trucks, Material Handling Containers, Platform Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Caster Brake Included
No
Wheel Color
Red
Features
Floor Protective
Caster Sub-Type
Swivel
Item
Plate Caster
Caster Plate Hole Pattern
B
Thread Guards
No
Load Rating
660 lb
Replacement Wheel
Mfr. No. P-URP-050X020/050R
Core Color
Gray
Inside Bolt Hole Spacing
3 in x 3 in
Caster Frame Material
Steel
Extended Lead
No
Caster Temp. Range Available
Yes
Frame Finish
Zinc Plated
Caster Brake Type
No Brake
Swivel Lock Type
No Lock Included
Number of Mounting Holes
4
Swivel Construction
Kingpin
Includes Thread Guards
No
Swivel Raceway Type
Double Ball
Wheel Core Material
Polyolefin
Wheel/Tread Hardness Rating
Hard
Wheel Bearing Type
Roller
Load Rating Range
Light-Medium Duty
Tread Shape
Standard
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Red
System of Measurement
Inch
Tread
Standard
Caster Mounting Type
Plate
ESD Conductive
No
Load Capacity
660 lb
Tread Color
Red
Accessories
Optional: P-DL21-14 (Directional Lock)
Resistant To
High Chemical Resistance To Many Aggressive Substances
Series
P21 Series
Compatible With
P-URP-050X020/050R
Wheel Hardness Rating
60 Shore D
Load Capacity - Maximum
750 lb
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Core Type
Solid
Wheel Bearing Material
Steel
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Swivel, Plate Caster, Load Rating 660 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
