  11. NSF-Listed Plate Caster, 700 lb. Ld Rating, Roller
Zoro Select NSF-Listed Plate Caster, 700 lb. Ld Rating, Roller P21S-C040R-14-WB-DL - main

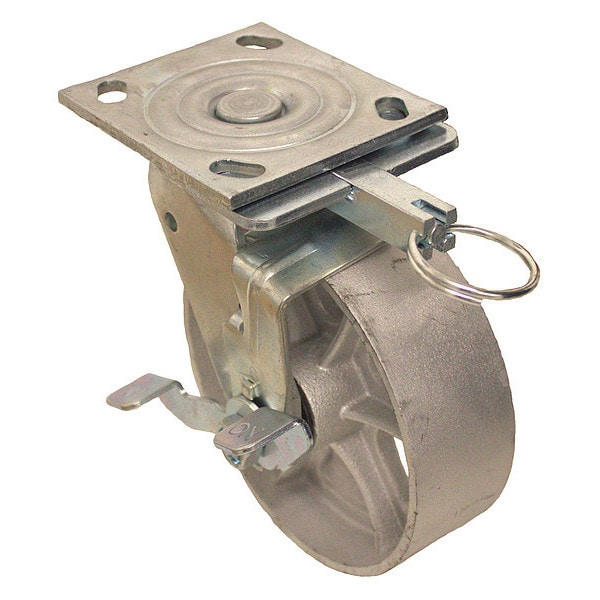

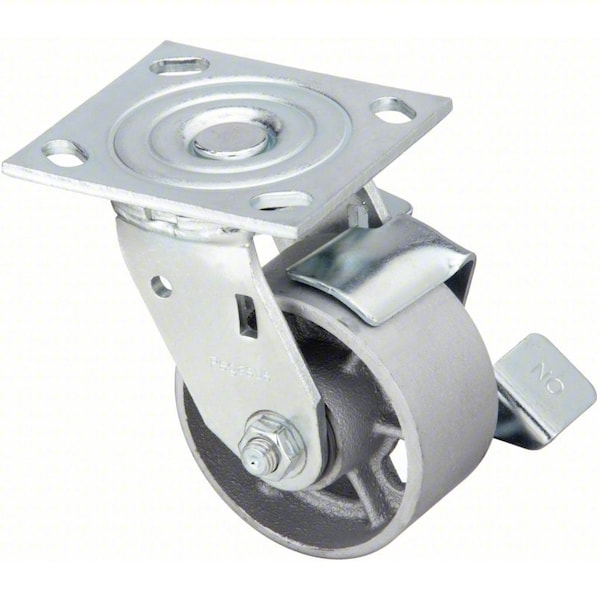

NSF-Listed Plate Caster, 700 lb. Ld Rating, Roller

  • Mfr # P21S-C040R-14-WB-DL

  • Zoro # G7278947

product price: $42.55
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Cast Iron
Caster Brake Type
Directional Lock, Side Brake
Wheel Dia.
4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P21S-C040R-14-WB-DL
Zoro #
G7278947
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
4 in
Wheel Width
2 in
Mounting Height
5 5/8 in
Mounting Plate Size
4in x 4-1/2in
Mounting Plate Thickness
1/4in
Mounting Bolt Dia.
3/8 in
Swivel Radius
3-3/8 in
Overall Height
5-5/8in
Outside Slot Spacing - Width
3 in
For Axle Dia.
1/2 in
Overall Wheel Width
2 in
Inside Slot Spacing - Length
3 in
Mounting Plate Length
4 in
Outside Slot Spacing - Length
3.625 in
Inside Slot Spacing - Width
2.625 in

Details

Item
Swivel Caster with Four Position Swivel Lock and Brake
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Cast Iron
Caster Brake Type
Directional Lock, Side Brake
Load Rating
700 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Roller
Wheel/Tread Color
Silver
Wheel Hardness Rating
180-220 BHN
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
No
Number of Wheels
1
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Inside Bolt Hole Spacing
3 in x 3 in
Caster Plate Hole Pattern
B
Frame Finish
Zinc Plated
Caster Temp. Range Available
Yes
Features
Push/Pull Force Reduction
Extended Lead
No
Caster Brake Included
Yes
Wheel Color
Silver
Standards
RoHS, ICWM, NSF
Replacement Wheel
Mfr. No. P-C-040x020/050R-VG1
Application
Retail, Industrial, Commercial
Thread Guards
No
Includes
Strap Type Brake, 4-Position Directional Lock
Swivel Construction
Kingpin
Load Rating Range
Light-Medium Duty
Wheel/Tread Hardness Rating
Extra Hard
Includes Thread Guards
No
Swivel Lock Type
4-Position Directional Lock
Swivel Raceway Type
Double Ball
Wheel Core Material
Cast Iron
Tread Color
Silver
Series
P21 Series
Load Capacity
700 lb
Resistant To
High Chemical Resistance To Many Aggressive Substances
Tread
Standard
ESD Conductive
No
Load Capacity - Maximum
700 lb
Compatible With
P-C-040X020/050R
For Surface Type
Grease, Metal Scrap, Oil, Rubber, Steel, Wood
Mounting Hole Type
Slot
Caster Features
Corrosion-Resistant
Wheel Bearing Material
Steel
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
Brake Location
Rear, Side
Operating Temperature - Maximum
250 Degrees F
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature Range
Up To 800 Degrees F

Description

Swivel, Plate Caster, Load Rating 700 lb, Swivel Lock Type 4-Position Directional Lock, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Iron, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Directional Lock, Side Brake, Tread Shape Standard
