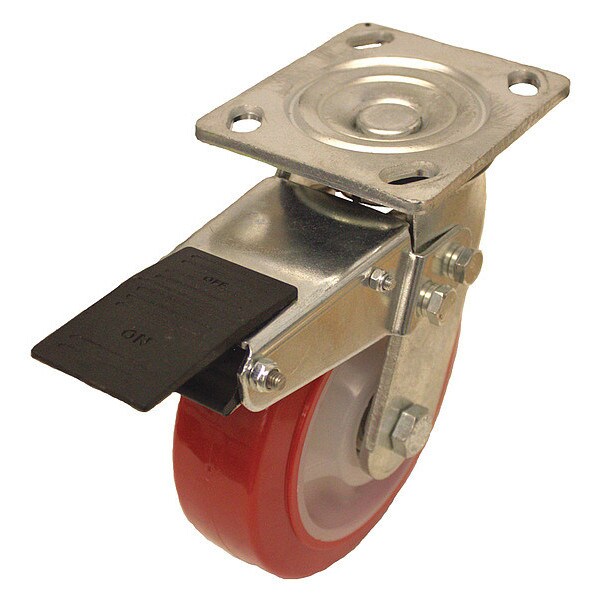

Zoro Select NSF-Listed Plate Caster, 770 lb. Ld Rating, Ball P21S-URPW060K-14-TB - main

NSF-Listed Plate Caster, 770 lb. Ld Rating, Ball

  • Mfr # P21S-URPW060K-14-TB

  • Zoro # G7279428

product price:  $50.65
/ea

Key Features

Caster Brake Type
Total Lock
Wheel Color
Red
Inside Bolt Hole Spacing
3 in x 3 in
Number of Wheels
1
Non-Marking
Yes
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
P21S-URPW060K-14-TB
Zoro #
G7279428
UPC #
-
Country of Origin
China

Dimensions

Overall Height
7-1/2in
Swivel Radius
6 in
Wheel Dia.
6 in
Mounting Bolt Dia.
3/8 in
Wheel Width
2 in
Mounting Height
7 1/2 in
Mounting Plate Size
4in x 4-1/2in
Mounting Plate Length
4 in
Outside Slot Spacing - Length
3.625 in
For Axle Dia.
1/2 in
Overall Wheel Width
2 in
Outside Slot Spacing - Width
3 in
Inside Slot Spacing - Length
3 in
Inside Slot Spacing - Width
2.625 in
Mounting Plate Thickness
1/4in

Details

Caster Brake Type
Total Lock
Wheel Color
Red
Inside Bolt Hole Spacing
3 in x 3 in
Number of Wheels
1
Non-Marking
Yes
Caster Frame Material
Steel
Caster Brake Included
Yes
Caster Temp. Range Available
Yes
Load Rating
770 lb
Features
Floor Protective
Standards
ANSI ICWM, NSF Listed
Caster Plate Hole Pattern
B
Extended Lead
No
Thread Guards
No
Core Color
White
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Frame Finish
Zinc Plated
Replacement Wheel
Mfr.No. P-URPW-060X020/050K
Item
Swivel Caster with Total Lock
Application
Dollies, Floor Trucks, Material Handling Containers, Platform Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Caster Sub-Type
Swivel
Includes
Total-Lock
Load Rating Range
Light-Medium Duty
Tread Shape
Standard
Wheel/Tread Hardness Rating
Hard
Swivel Construction
Kingpin
Swivel Raceway Type
Double Ball
Number of Mounting Holes
4
Wheel Bearing Type
Ball
Includes Thread Guards
No
Swivel Lock Type
Total Lock
Wheel Core Material
Polypropylene
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Red
System of Measurement
Inch
Load Capacity
770 lb
Series
P21 Series
Tread
Standard
Resistant To
High Chemical Resistance To Many Aggressive Substances
Caster Mounting Type
Plate
Tread Color
Red
ESD Conductive
No
Wheel Hardness Rating
55 Shore D
Load Capacity - Maximum
770 lb
Compatible With
Mfr.No. P-URPW-060X020/050K
Mounting Hole Type
Slot
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Core Type
Solid
Wheel Bearing Material
Steel
Mounting Plate Shape
Rectangle
Brake Location
Rear
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Swivel, Plate Caster, Load Rating 770 lb, Swivel Lock Type Total Lock, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
