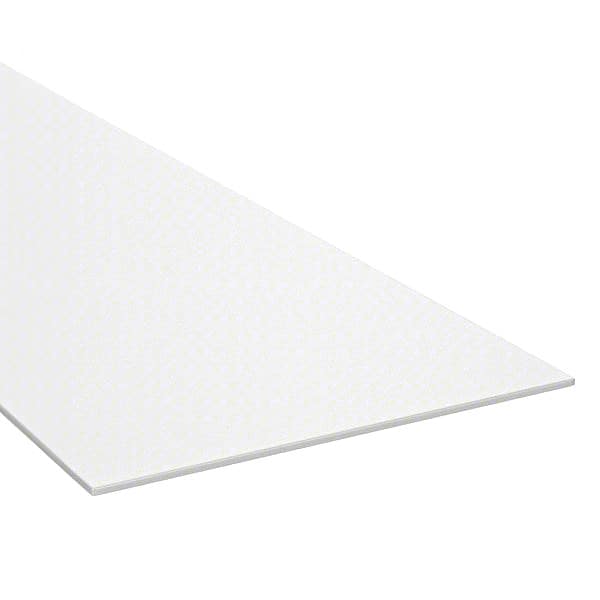

Off-White HDPE Sheet Stock 48" L x 48" W x 0.500" Thick

  • Mfr # 3HMP3

  • Zoro # G6599372


product price: $139.99
/ea
Free Shipping & Returns

Key Features

Plastic Material
HDPE
Plastic Thickness
0.500"
Plastic Width
48"
Plastic Length
48"
Plastic Color
Off-White
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3HMP3
Zoro #
G6599372
UPC #
-
Country of Origin
Multiple

Dimensions

Plastic Thickness
0.500"
Plastic Width
48"
Plastic Length
48"
Width Tolerance
+/-0.25 in
Length Tolerance
+/-0.250 in
Width
48"
Length
48"
Thickness
0.500"
Plastic Width Tolerance
+/-0.25 in
Plastic Length Tolerance
+/-0.250 in
Nominal Size
48 in W x 48 in L

Details

Item
Sheet Stock
Plastic Material
HDPE
Plastic Color
Off-White
Max. Temp. (F)
194 Degrees F
Min. Temp. (F)
0 Degrees F
Color
Off-White
Material Color Family
Off-White
Material Type
Food Grade
Plastic Grouping
Sheet Stock
Tensile Strength
4,600 psi
Operating Temp. Range
0 Degrees to 194 Degrees F
Impact Strength
1.94 ft-lb/in
Standards
ASTM D2239, Dept of Canadian Agriculture, FDA, USDA
Thickness Tolerance
+/-10%
Plastic Properties
Chemical/Corrosion Resistant, FDA Approved, Non-Friction Surface, Moisture Resistant, Wear Material
Material
HDPE
Plastic Hardness Rating
Medium
UV Resistant
No
Wear Factor
Good
Friction Rating
Very Slippery
Water Absorption Rating
Excellent
Plastic Clarity
Opaque
Plastic Thickness Tolerance
+/-10%
Temperature Range
0 Degrees to 194 Degrees F
Tensile Strength Rating
Poor
Machinability
80 %
Minimum Temperature
-40 Degrees F
Friction Coefficient
0.2
Corrosion and Chemical Resistance
Good
Shape
Square
Plastic Hardness
70D
Grade
Standard
Maximum Temperature
180 Degrees F
Water Absorption
0.01 %
Impact Strength Rating
Poor
Maximum Adhesive Temperature
203 Degrees F
Plastic Density
0.93 g/cc
Minimum Adhesive Temperature
70 Degrees F
Light Transmission
90 %
FDA Compliance
21 CFR 177.1520
Wear Rate
6.53 x 10^-6 cu mm/N-m
Rockwell Hardness
64 HRM
UV-Resistant
UV-Resistant
Shore Hardness
70 Shore D
Fabrication
Extruded
Product Type
Plastic Sheet
Coefficient of Thermal Expansion
0.55 x 10^-5 in/in/ Degrees F
Dielectric Strength
50 kV/mm
Static-Resistant
Not Static-Resistant
Product Form
Sheet
Scratch-Resistant
Scratch-Resistant
Metal Detectable
Not Metal Detectable
Elongation
300 %
Flexural Modulus
174 ksi

Description

The ZORO SELECT - 3HMP3 is a type of Sheet Stock, which falls under the category of Plastic Sheets. This off-white plastic sheet is made from HDPE material and comes in a standard grade. It's intended for use as a raw material in the fabrication of parts or prototypes, with properties that may offer versatility and durability.

  • Corrosion and Chemical Resistance: The sheet is designed with properties that may resist damage or degradation when exposed to certain corrosive substances, chemicals, or environmental conditions.
  • Friction Coefficient & Rating: With a friction coefficient of 0.2, it provides a relatively slippery surface which could influence its applicability in scenarios requiring movement control and stability.
  • Impact Strength & Rating: The impact strength is rated at 1.30 ft-lb/in; this rating suggests potential limitations on the amount of energy it can absorb before breaking under sudden force or shock.
  • Machinability: Its machinability is rated as fair; this implies potential compatibility with cutting, shaping, and finishing processes using industrial tools while minimizing possible harm to both the material and equipment.
  • Temperature Range: This plastic sheet's specified operational temperature range lies between 0 Degrees F and 194 Degrees F; maintaining usage within these limits helps uphold its structural integrity.
  • Tensile Strength & Rating: The tensile strength is measured at 4,600 psi; its rating implies potential limitations on the amount of stress it can endure during stretching before breaking
