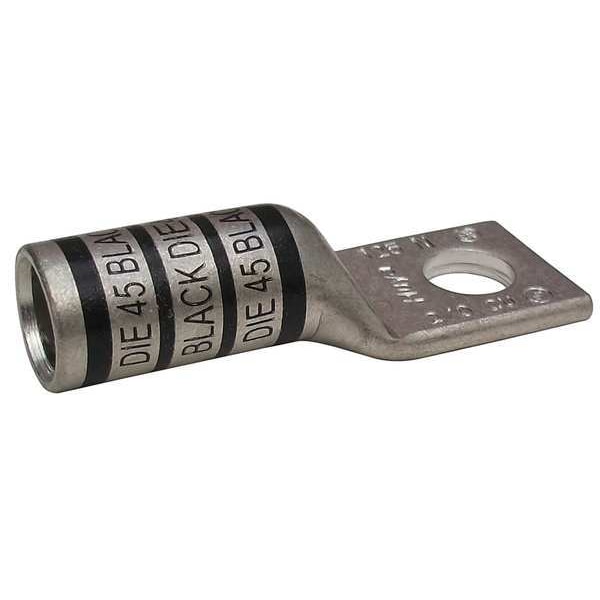

One-Hole Compression Lug, 2/0 AWG Max, 1/4 in Stud, Long Barrel, Copper, Black

  • Mfr # 24D002

  • Zoro # G5206494

product price:  $4.75
/ea

Key Features

For Wire Size
2/0 AWG
For Conductor Material
Copper
For Stud Size
1/4 in
Material
Copper
Barrel Size
Long
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
24D002
Zoro #
G5206494
UPC #
190735434123
Country of Origin
China

Dimensions

For Wire Size
2/0 AWG
For Stud Size
1/4 in
Barrel Size
Long
Tongue Width
0.82 in
Barrel Length
Long
Cable Size
2/0
Length
2.22"
Width
0.97"
Length (Straight Wireway)
2.22 in
For Stranded Copper Wire Size - Minimum
2/0 AWG
Strip Length
1 1/8 in
For Stranded Copper Wire Size - Maximum
2/0 AWG
Barrel Inside Diameter
0.45 in
Tongue Thickness
0.13 in
Hole Size
0.27 in
Tongue Length
0.87 in
Barrel Outside Diameter
0.57 in
Overall Length
2.22 in
Overall Width
0.82 in
Wire Rope Length
2.22 in

Details

Item
One-Hole Compression Lug
For Conductor Material
Copper
Material
Copper
Tongue Angle
Straight
Inspection Hole
No
Die Code
45
Color Code
Black
Standards
CSA Certified, UL Listed
Connector Type
Straight Barrel
Hole Center to End
0.34 in
Tongue Style
Standard
Peep Hole
No
Current
265 A
Termination Style
Crimp
Barrel Style
Chamfered
Maximum Voltage
35 kV
Contact Finish
Tin
Maximum Operating Temperature
300 Degrees F
Special Features
Corrosion Resistant, High-Conductivity Construction
RoHS Compliant
Yes
Seam Style
Seamless
For Wire Type
Stranded
Number of Holes
1

Description

Compression Lug, Barrel Size Long, Color Code Black, Die Code 45, Tongue Angle Straight, Tongue Width 0.82 in, For Conductor Material Copper, For Stud Size 1/4 in, For Stranded Copper Wire Size - Minimum 2/0 AWG, For Stranded Copper Wire Size - Maximum 2/0 AWG, Inspection Hole No, Hole Center to Center Not Applicable, Material Copper, Maximum Operating Temperature 257 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Seam Style Seamless, Standards CSA Certified, UL Listed
