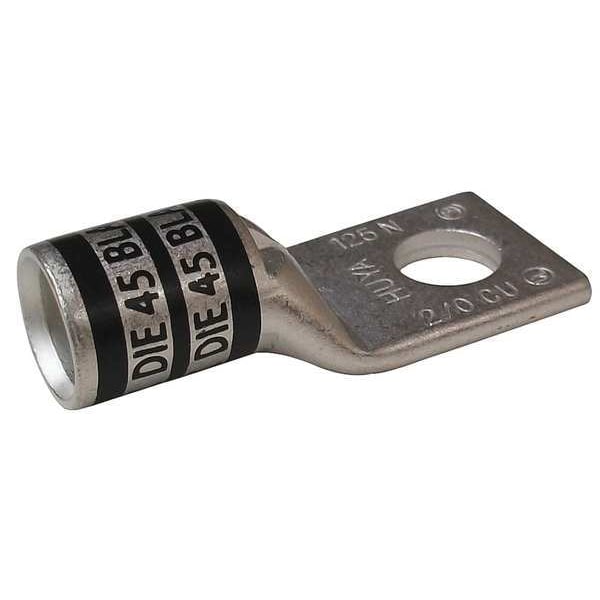

One-Hole Compression Lug, 2/0 AWG Max, 1/4 in Stud, Short Barrel, Copper, Black
Mfr # 24C346
Zoro # G4668702
product price: $3.65
/eaKey Features
For Wire Size
2/0 AWG
For Conductor Material
Copper
For Stud Size
1/4 in
Material
Copper
Barrel Size
Short
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
24C346
Zoro #
G4668702
UPC #
190735431924
Country of Origin
China
Dimensions
For Wire Size
2/0 AWG
For Stud Size
1/4 in
Barrel Size
Short
Tongue Width
0.83 in
Barrel Length
Short
Length
1.65"
Cable Size
2/0
Width
0.83"
Length (Straight Wireway)
1.65 in
Tongue Thickness
0.13 in
For Stranded Copper Wire Size - Minimum
2/0 AWG
For Stranded Copper Wire Size - Maximum
2/0 AWG
Hole Size
0.27 in
Barrel Inside Diameter
0.44 in
Tongue Length
0.65 in
Strip Length
13/16 in
Barrel Outside Diameter
0.57 in
Overall Length
1.65 in
Overall Width
0.83 in
Description
One-Hole Lug Compression Connector, Barrel Size Short, Color Code Black, Die Code 45, Tongue Angle Straight, Tongue Width 0.83 in, For Conductor Material Copper, For Stud Size 1/4 in, For Stranded Copper Wire Size - Minimum 2/0 AWG, For Stranded Copper Wire Size - Maximum 2/0 AWG, Inspection Hole Yes, Material Copper, Maximum Operating Temperature 300 Degrees F, Maximum Voltage 600 V AC, Termination Style Crimp, Seam Style Seamless, Standards CSA Certified, UL Listed, Number of Holes 1
