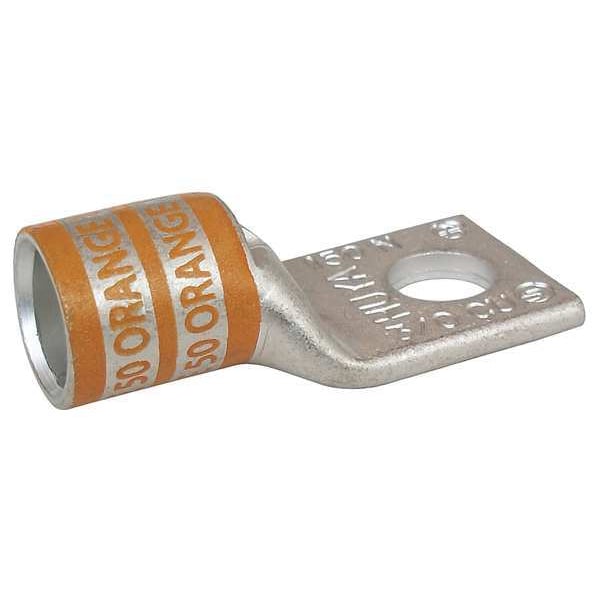

One-Hole Compression Lug, 3/0 AWG Max, 1/2 in Stud, Short Barrel, Copper, Orange
Mfr # 24C372
Zoro # G4668474
product price: $5.39
/eaKey Features
For Wire Size
3/0 AWG
For Conductor Material
Copper
For Stud Size
1/2 in
Material
Copper
Barrel Size
Short
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
24C372
Zoro #
G4668474
UPC #
190735432181
Country of Origin
China
Dimensions
For Wire Size
3/0 AWG
For Stud Size
1/2 in
Barrel Size
Short
Tongue Width
0.92 in
Cable Size
3/0
Length
2.27"
Width
0.92"
Barrel Length
Short
Length (Straight Wireway)
2.27 in
Barrel Inside Diameter
0.51 in
For Stranded Copper Wire Size - Minimum
3/0 AWG
For Stranded Copper Wire Size - Maximum
3/0 AWG
Tongue Thickness
0.13 in
Strip Length
13/16 in
Barrel Outside Diameter
0.63 in
Overall Width
0.92 in
Overall Length
2.27 in
Hole Size
0.53 in
Tongue Length
1.25 in
Description
One-Hole Lug Compression Connector, Barrel Size Short, Color Code Orange, Die Code 50, Tongue Angle Straight, Tongue Width 0.92 in, For Conductor Material Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Minimum 3/0 AWG, For Stranded Copper Wire Size - Maximum 3/0 AWG, Inspection Hole Yes, Material Copper, Maximum Operating Temperature 300 Degrees F, Maximum Voltage 600 V AC, Termination Style Crimp, Seam Style Seamless, Standards CSA Certified, UL Listed, Number of Holes 1
