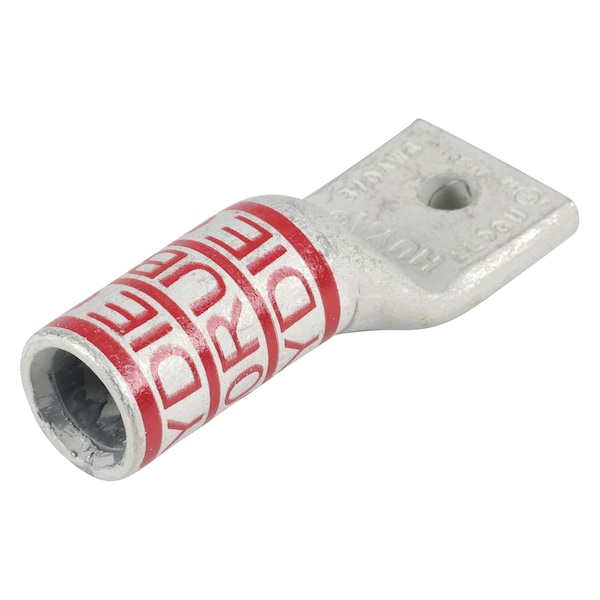

One-Hole Compression Lug, 3/0 AWG Max, 1/4 in Stud, Short Barrel, Aluminum, Ruby
Mfr # 29YK74
Zoro # G2005571
product price: $5.69
/eaKey Features
For Wire Size
3/0 AWG
For Conductor Material
Aluminum
For Stud Size
1/4 in
Material
Aluminum
Barrel Size
Short
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
29YK74
Zoro #
G2005571
UPC #
190735440094
Country of Origin
China
Dimensions
For Wire Size
3/0 AWG
For Stud Size
1/4 in
Barrel Size
Short
Tongue Width
1.06 in
Width
0.63"
Barrel Length
Short
Cable Size
3/0
Length
1.88"
Length (Straight Wireway)
1.88 in
Tongue Thickness
0.24 in
For Stranded Aluminum Wire Size - Maximum
3/0 AWG
Overall Width
1.06 in
Hole Size
0.27 in
Tongue Length
0.87 in
For Stranded Copper Wire Size - Maximum
3/0 AWG
For Stranded Aluminum Wire Size - Minimum
3/0 AWG
Strip Length
1 1/2 in
For Stranded Copper Wire Size - Minimum
3/0 AWG
Barrel Outside Diameter
0.77 in
Barrel Inside Diameter
0.52 in
Overall Length
2.76 in
Description
One-Hole Lug Compression Connector, Barrel Size Short, Color Code Ruby, Die Code 60, Tongue Angle Straight, Tongue Width 1.06 in, For Conductor Material Aluminum, For Stud Size 1/4 in, For Stranded Copper Wire Size - Minimum 3/0 AWG, For Stranded Copper Wire Size - Maximum 3/0 AWG, Inspection Hole No, Material Aluminum, Maximum Operating Temperature 300 Degrees F, Maximum Voltage 600 V AC, Termination Style Crimp, Seam Style Seamless, Standards UL Listed, Number of Holes 1, RoHS Compliant Yes
