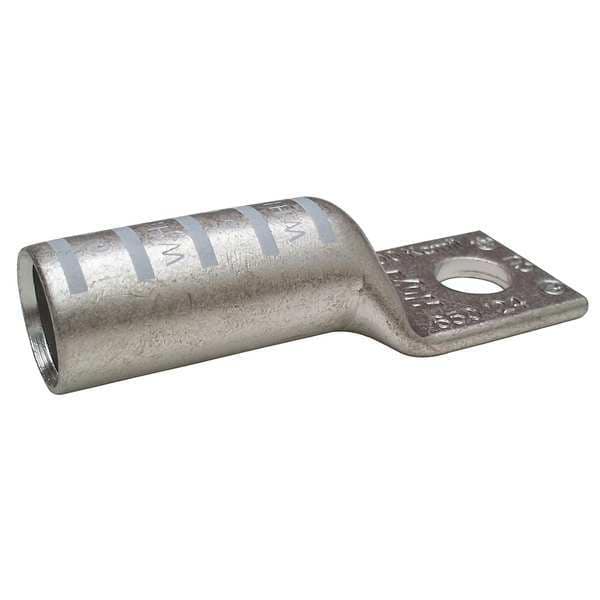

One-Hole Compression Lug, 300 kcmil Max, 5/16 in Stud, Long Barrel, Copper, White
Mfr # 24D007
Zoro # G5206187
product price:Â
$
9.29
/ea
Key Features
For Wire Size
300 kcmil
For Conductor Material
Copper
For Stud Size
5/16 in
Material
Copper
Barrel Size
Long
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 24D007
- Zoro #
- G5206187
- UPC #
- 190735434178
- Country of Origin
- China
Dimensions
- For Wire Size
- 300 kcmil
- For Stud Size
- 5/16 in
- Barrel Size
- Long
- Tongue Width
- 1.19 in
- Width
- 1.19"
- Length
- 3.65"
- Cable Size
- 300 kcmil
- Barrel Length
- Long
- Length (Straight Wireway)
- 3.65 in
- Overall Length
- 3.65 in
- Strip Length
- 2 3/8 in
- For Stranded Copper Wire Size - Minimum
- 300 kcmil
- Barrel Inside Diameter
- 0.63 in
- Tongue Length
- 1.01 in
- Hole Size
- 0.335 in
- Overall Width
- 1.19 in
- Tongue Thickness
- 0.18 in
- For Stranded Copper Wire Size - Maximum
- 300 kcmil
- Barrel Outside Diameter
- 0.81 in
- Wire Rope Length
- 3.65 in
Description
One-Hole Lug Compression Connector, Barrel Size Long, Color Code White, Die Code 66, Tongue Angle Straight, Tongue Width 1.19 in, For Conductor Material Copper, For Stud Size 5/16 in, For Stranded Copper Wire Size - Minimum 300 kcmil, For Stranded Copper Wire Size - Maximum 300 kcmil, Inspection Hole No, Material Copper, Maximum Operating Temperature 300 Degrees F, Maximum Voltage 600 V AC, Termination Style Crimp, Seam Style Seamless, Standards UL Listed, Number of Holes 1, RoHS Compliant Yes
