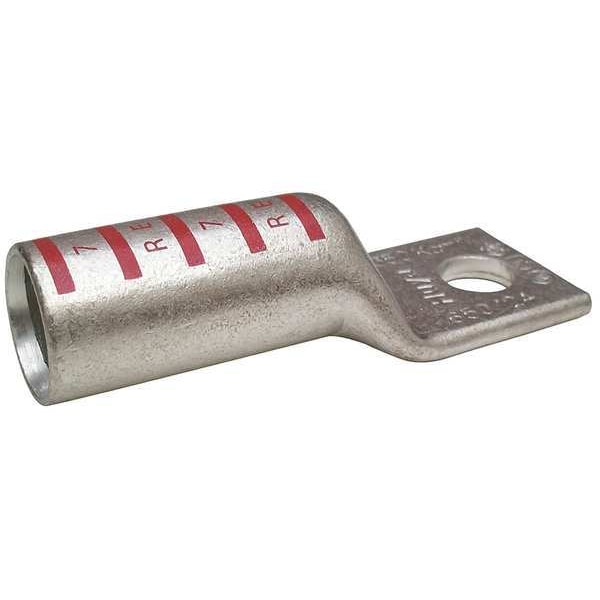

One-Hole Compression Lug, 350 kcmil Max, 3/8 in Stud, Long Barrel, Copper, Red
- Mfr # 24D009
- Zoro # G5206747
CAD Available
product price:Â
$
12.75
/ea
Key Features
CAD Drawing
For Wire Size
350 kcmil
For Conductor Material
Copper
For Stud Size
3/8 in
Material
Copper
Barrel Size
Long
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 24D009
- Zoro #
- G5206747
- UPC #
- 190735434192
- Country of Origin
- China
Dimensions
- For Wire Size
- 350 kcmil
- For Stud Size
- 3/8 in
- Barrel Size
- Long
- Tongue Width
- 1.359 in
- Width
- 1.36 in
- Length
- 3.6"
- Barrel Length
- Long
- Cable Size
- 350 kcmil
- Length (Straight Wireway)
- 3.6 in
- Overall Length
- 3.6 in
- Tongue Thickness
- 0.19 in
- Tongue Length
- 1.25 in
- Overall Width
- 1.36 in
- Barrel Outside Diameter
- 0.93 in
- For Stranded Copper Wire Size - Minimum
- 350 kcmil
- Hole Size
- 0.405 in
- Strip Length
- 2 in
- Barrel Inside Diameter
- 0.74 in
- For Stranded Copper Wire Size - Maximum
- 350 kcmil
- Wire Rope Length
- 3.6 in
Description
One-Hole Lug Compression Connector, Barrel Size Long, Color Code Red, Die Code 71, Tongue Angle Straight, Tongue Width 1.359 in, For Conductor Material Copper, For Stud Size 3/8 in, For Stranded Copper Wire Size - Minimum 350 kcmil, For Stranded Copper Wire Size - Maximum 350 kcmil, Inspection Hole No, Material Copper, Maximum Operating Temperature 300 Degrees F, Maximum Voltage 600 V AC, Termination Style Crimp, Seam Style Seamless, Standards UL Listed, Number of Holes 1, RoHS Compliant Yes
