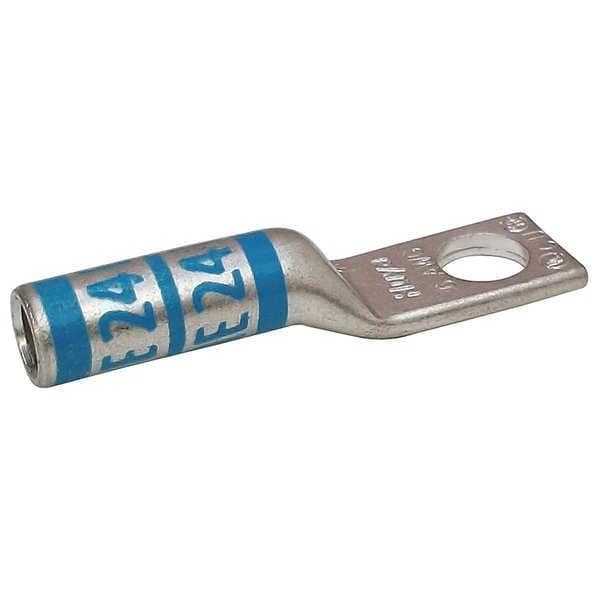

One-Hole Compression Lug, 6 AWG Max, 3/8 in Stud, Long Barrel, Copper, Blue
Mfr # 24C990
Zoro # G5206677
CAD Available
product price: $2.49
/eaKey Features
CAD Drawing
For Wire Size
6 AWG
For Conductor Material
Copper
For Stud Size
3/8 in
Material
Copper
Barrel Size
Long
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
24C990
Zoro #
G5206677
UPC #
190735434017
Country of Origin
China
Dimensions
For Wire Size
6 AWG
For Stud Size
3/8 in
Barrel Size
Long
Tongue Width
0.62 in
Width
0.62"
Cable Size
6 AWG
Barrel Length
Long
Length
1.72"
Length (Straight Wireway)
1.72 in
Barrel Outside Diameter
0.31 in
Barrel Inside Diameter
0.22 in
Tongue Length
0.67 in
For Stranded Copper Wire Size - Maximum
6 AWG
For Stranded Copper Wire Size - Minimum
6 AWG
Tongue Thickness
0.08 in
Hole Size
0.405 in
Overall Width
0.62 in
Overall Length
1.72 in
Strip Length
7/8 in
Description
One-Hole Lug Compression Connector, Barrel Size Long, Color Code Blue, Die Code 24, Tongue Angle Straight, Tongue Width 0.62 in, For Conductor Material Copper, For Stud Size 3/8 in, For Stranded Copper Wire Size - Minimum 6 AWG, For Stranded Copper Wire Size - Maximum 6 AWG, Inspection Hole No, Material Copper, Maximum Operating Temperature 300 Degrees F, Maximum Voltage 600 V AC, Termination Style Crimp, Seam Style Seamless, Standards UL Listed, Number of Holes 1, RoHS Compliant Yes
