  5. Panel-Mount Pressure Gauge, 0 to 1,000 psi, 2 1/2 in Dial, 1/4 in NPT, Center Back Location

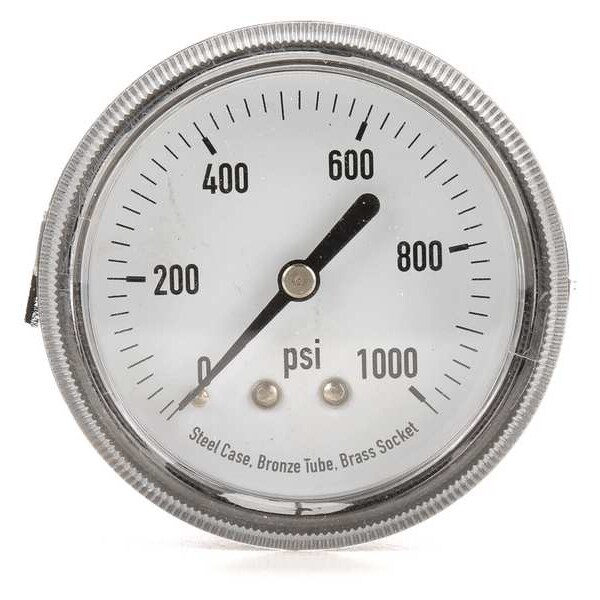

Zoro Select Panel-Mount Pressure Gauge, 0 to 1,000 psi, 2 1/2 in Dial, 1/4 in NPT, Center Back Location 4UA29 - main
Shop ZORO SELECT

Panel-Mount Pressure Gauge, 0 to 1,000 psi, 2 1/2 in Dial, 1/4 in NPT, Center Back Location

  • Mfr # 4UA29

  • Zoro # G0046654

product price:  $5.99
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Center Back
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
2 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4UA29
Zoro #
G0046654
UPC #
190735520147
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 1/2 in
Nominal Dial Size
2 1/2 in
Nominal Dial Diameter
2 1/2 in

Details

Item
Panel-Mount Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Center Back
Process Connection Type
NPT
Application
General Purpose
Gauge Case Material
Steel
Lens Material
Polycarbonate
Primary Pressure Range
0 to 1,000
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
Yes
Blowout Safety Back
No
Gauge Application
U-Clamp
For Use With
Air, Water, Gas and Oils
Smallest Graduation
20 psi
Calibration Certificate Included
No
Gauge Mounting Method
U Clamp
Case Color
Black
Gauge Primary Range Smallest Graduation
20
Socket Material
Brass
Case Material
Steel
Connection Type
MNPT
Wetted Materials
Brass / Bronze
Shop By
Closeouts
Dial Color
White
Pressure Range Type
Pressure
Dry Dampening Feature
None
Cleaned for Oxygen Service
No
Includes Calibration Certificate
No
Non-Sparking
No
Includes Vent Plug
No
Includes Mounting Hardware
No
Accuracy Scale
Mid-Scale
Pressure Gauge Type
Commercial Pressure Gauge
Primary Scale Minor Graduations
20
Freeze Resistant Movement
No
Sensor Material
Bronze
Field Fillable
No
Gauge Case Liquid
None
Ambient Operating Temperature Range
-40 Degrees to 120 Degrees F
Removable Bezel
No
Vibration Resistance
None
Scale Type
Single
Process Connection Gender
Male
Maximum Pressure
1,000 psi
Operating Temperature Range
-40 Degrees to 120 Degrees F
Primary Scale Pressure Measurement - Minimum
0 psi
Operating Temperature - Maximum
120 Degrees F
Case Liquid
None
Primary Scale Pressure Measurement - Maximum
1,000 psi
Operating Temperature - Minimum
-40 Degrees F

Description

Panel-Mount Pressure Gauge, Nominal Dial Size 2 1/2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Center Back, Case Color Black, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 1,000, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Commercial Pressure Gauge
