  9. Panel-Mount Pressure Gauge, 0 to 1,000 psi, 2 in Dial, 1/4 in NPT, Center Back Location

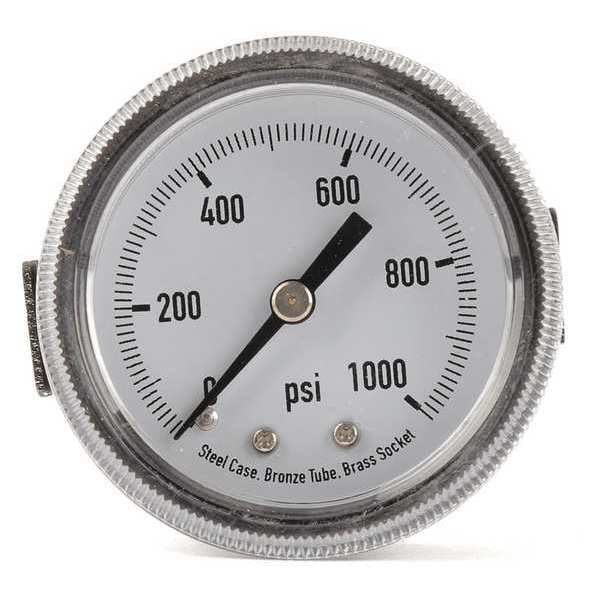

Zoro Select Panel-Mount Pressure Gauge, 0 to 1,000 psi, 2 in Dial, 1/4 in NPT, Center Back Location 4CEZ4 - main

Panel-Mount Pressure Gauge, 0 to 1,000 psi, 2 in Dial, 1/4 in NPT, Center Back Location

  • Mfr # 4CEZ4

  • Zoro # G0046584

product price: $5.45
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Center Back
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4CEZ4
Zoro #
G0046584
UPC #
190735501313
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 in
Nominal Dial Size
2 in
Nominal Dial Diameter
2 in

Details

Item
Panel-Mount Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Center Back
Process Connection Type
NPT
Application
General Purpose
Gauge Case Material
Steel
Lens Material
Polycarbonate
Primary Pressure Range
0 to 1,000
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
Yes
Blowout Safety Back
No
Smallest Graduation
10 psi
Gauge Application
U-Clamp
For Use With
Air, Water, Gas and Oils
Gauge Primary Range Smallest Graduation
10
Case Color
Black
Calibration Certificate Included
No
Gauge Mounting Method
U Clamp
Socket Material
Brass
Case Material
Steel
Connection Type
MNPT
Wetted Materials
Brass / Bronze
Shop By
Closeouts
Includes Vent Plug
No
Pressure Range Type
Pressure
Pressure Gauge Type
Commercial Pressure Gauge
Dry Dampening Feature
None
Freeze Resistant Movement
No
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F
Includes Calibration Certificate
No
Scale Type
Single
Primary Scale Minor Graduations
10
Cleaned for Oxygen Service
No
Process Connection Gender
Male
Non-Sparking
No
Accuracy Scale
Mid-Scale
Includes Mounting Hardware
No
Dial Color
White
Field Fillable
No
Gauge Case Liquid
None
Vibration Resistance
None
Sensor Material
Bronze
Removable Bezel
No
Maximum Pressure
1,000 psi
Operating Temperature Range
-40 Degrees to 150 Degrees F
Case Liquid
None
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
150 Degrees F
Primary Scale Pressure Measurement - Minimum
0 psi
Primary Scale Pressure Measurement - Maximum
1,000 psi

Description

Panel-Mount Pressure Gauge, Nominal Dial Size 2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Center Back, Case Color Black, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 1,000, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Commercial Pressure Gauge
