  5. Panel-Mount Pressure Gauge, 0 to 1,000 psi, 2 in Dial, 1/8 in NPT, Center Back Location

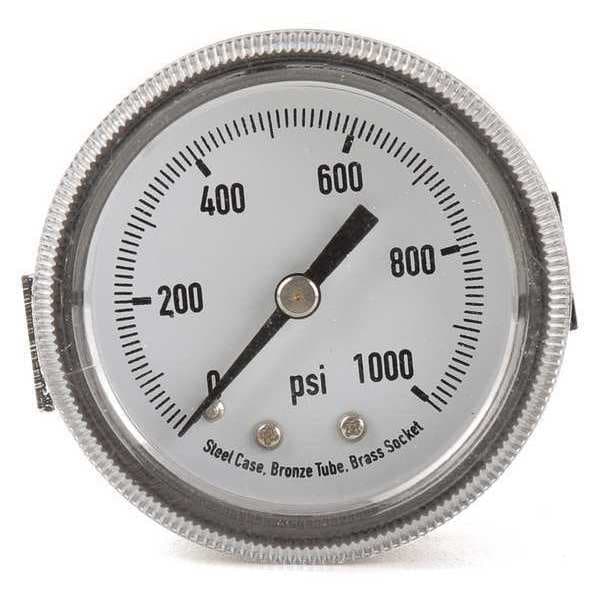

Zoro Select Panel-Mount Pressure Gauge, 0 to 1,000 psi, 2 in Dial, 1/8 in NPT, Center Back Location 4CEY3 - main

Panel-Mount Pressure Gauge, 0 to 1,000 psi, 2 in Dial, 1/8 in NPT, Center Back Location

  • Mfr # 4CEY3

  • Zoro # G0046417

product price:  $4.59
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Center Back
Process Connection Size
1/8 in
Process Connection Type
NPT
Dial Size (In.)
2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
4CEY3
Zoro #
G0046417
UPC #
190735501214
Country of Origin
China

Dimensions

Process Connection Size
1/8 in
Dial Size (In.)
2 in
Nominal Dial Size
2 in

Details

Item
Panel-Mount Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Center Back
Process Connection Type
NPT
Application
General Purpose
Gauge Case Material
Steel
Lens Material
Polycarbonate
Primary Pressure Range
0 to 1,000
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
Yes
Blowout Safety Back
No
For Use With
Air, Water, Gas and Oils
Gauge Mounting Method
U Clamp
Gauge Application
U-Clamp
Case Color
Black
Gauge Primary Range Smallest Graduation
10
Smallest Graduation
10 psi
Calibration Certificate Included
No
Socket Material
Brass
Case Material
Steel
Wetted Materials
Brass / Bronze
Connection Type
MNPT
Shop By
Closeouts
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F
Gauge Case Liquid
None
Freeze Resistant Movement
No
Vibration Resistance
None
Field Fillable
No
Process Connection Gender
Male
Includes Calibration Certificate
No
Scale Type
Single
Includes Vent Plug
No
Dry Dampening Feature
None
Pressure Gauge Type
Panel-Mount Dial Pressure Gauge
Includes Mounting Hardware
No
Cleaned for Oxygen Service
No
Pressure Range Type
Pressure
Sensor Material
Bronze
Accuracy Scale
Mid-Scale
Non-Sparking
No
Dial Color
White
Primary Scale Minor Graduations
10
Removable Bezel
No
Maximum Pressure
1,000 psi
Operating Temperature Range
-40 Degrees to 150 Degrees F

Description

Panel-Mount Pressure Gauge, Accuracy +/-3-2-3 Percent, Gauge Case Material Steel, Nominal Dial Size 2 in, Lens Material Polycarbonate, IP/NEMA Rating Not Rated, Hazardous Location Rating Not Rated, Sensor Material Bronze, Socket Material Brass, Process Connection Type NPT, Process Connection Gender Male, Process Connection Location Center Back, Process Connection Size 1/8 in, Panel-Mountable Yes, Pressure Gauge Type Commercial Pressure Gauge
