  9. Panel-Mount Pressure Gauge, 0 to 400 psi, 3 1/2 in Dial, 1/4 in NPT, Center Back Location

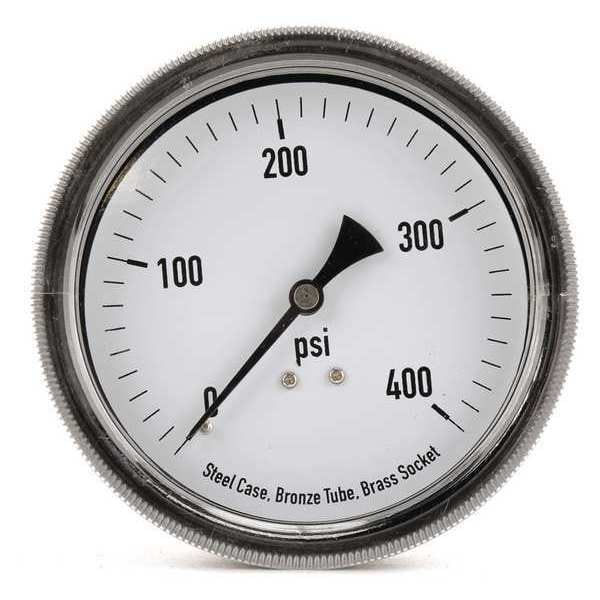

Zoro Select Panel-Mount Pressure Gauge, 0 to 400 psi, 3 1/2 in Dial, 1/4 in NPT, Center Back Location 4CFA8 - main

Panel-Mount Pressure Gauge, 0 to 400 psi, 3 1/2 in Dial, 1/4 in NPT, Center Back Location

  • Mfr # 4CFA8

  • Zoro # G0046812

product price: $6.99
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Center Back
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
3 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4CFA8
Zoro #
G0046812
UPC #
190735501443
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
3 1/2 in
Nominal Dial Size
3 1/2 in

Details

Item
Panel-Mount Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Center Back
Process Connection Type
NPT
Application
General Purpose
Gauge Case Material
Steel
Lens Material
Polycarbonate
Primary Pressure Range
0 to 400
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
Yes
Blowout Safety Back
No
Case Color
Black
Gauge Primary Range Smallest Graduation
2
For Use With
Air, Water, Gas and Oils
Calibration Certificate Included
No
Gauge Mounting Method
U Clamp
Gauge Application
U-Clamp
Smallest Graduation
2 psi
Socket Material
Brass
Case Material
Steel
Wetted Materials
Brass / Bronze
Connection Type
MNPT
Shop By
Closeouts
Cleaned for Oxygen Service
No
Pressure Gauge Type
Panel-Mount Dial Pressure Gauge
Primary Scale Minor Graduations
10
Dry Dampening Feature
None
Non-Sparking
No
Accuracy Scale
Mid-Scale
Scale Type
Single
Includes Calibration Certificate
No
Field Fillable
No
Process Connection Gender
Male
Includes Mounting Hardware
No
Removable Bezel
No
Vibration Resistance
None
Gauge Case Liquid
None
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F
Freeze Resistant Movement
No
Includes Vent Plug
No
Sensor Material
Bronze
Dial Color
White
Pressure Range Type
Pressure
Maximum Pressure
400
Operating Temperature Range
-40 Degrees to 150 Degrees F

Description

Panel-Mount Pressure Gauge, Nominal Dial Size 3 1/2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Center Back, Case Color Black, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 400, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Commercial Pressure Gauge
