  9. Panel-Mount Pressure Gauge, 0 to 600 psi, 3 1/2 in Dial, 1/4 in NPT, Center Back Location

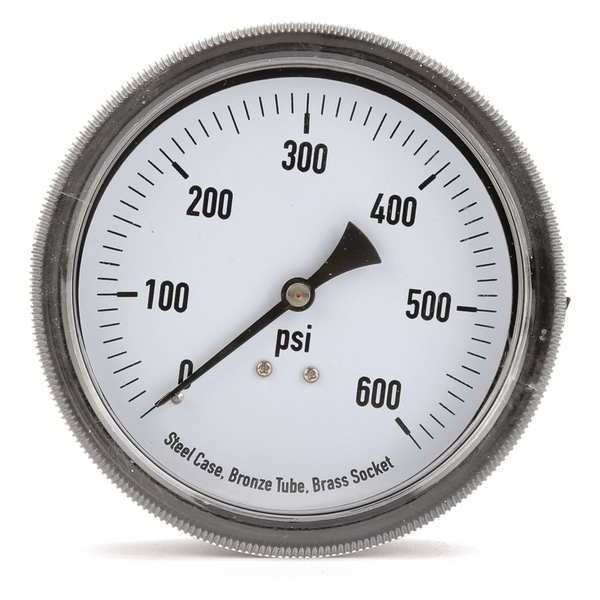

Zoro Select Panel-Mount Pressure Gauge, 0 to 600 psi, 3 1/2 in Dial, 1/4 in NPT, Center Back Location 4CFA9 - main

Panel-Mount Pressure Gauge, 0 to 600 psi, 3 1/2 in Dial, 1/4 in NPT, Center Back Location

  • Mfr # 4CFA9

  • Zoro # G0046821

product price: $6.99
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Center Back
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
3 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4CFA9
Zoro #
G0046821
UPC #
190735501450
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
3 1/2 in
Nominal Dial Size
3 1/2 in

Details

Item
Panel-Mount Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Center Back
Process Connection Type
NPT
Application
General Purpose
Gauge Case Material
Steel
Lens Material
Polycarbonate
Primary Pressure Range
0 to 600
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
Yes
Blowout Safety Back
No
Smallest Graduation
2 psi
Calibration Certificate Included
No
Gauge Mounting Method
U Clamp
Gauge Application
U-Clamp
For Use With
Air, Water, Gas and Oils
Gauge Primary Range Smallest Graduation
2
Case Color
Black
Case Material
Steel
Socket Material
Brass
Connection Type
MNPT
Wetted Materials
Brass / Bronze
Shop By
Closeouts
Primary Scale Minor Graduations
10
Gauge Case Liquid
None
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F
Vibration Resistance
None
Dry Dampening Feature
None
Dial Color
White
Pressure Gauge Type
Panel-Mount Dial Pressure Gauge
Includes Mounting Hardware
No
Sensor Material
Bronze
Includes Calibration Certificate
No
Process Connection Gender
Male
Includes Vent Plug
No
Pressure Range Type
Pressure
Accuracy Scale
Mid-Scale
Cleaned for Oxygen Service
No
Non-Sparking
No
Scale Type
Single
Removable Bezel
No
Freeze Resistant Movement
No
Field Fillable
No
Maximum Pressure
600
Operating Temperature Range
-40 Degrees to 150 Degrees F

Description

Panel-Mount Pressure Gauge, Nominal Dial Size 3 1/2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Center Back, Case Color Black, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 600, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Commercial Pressure Gauge
