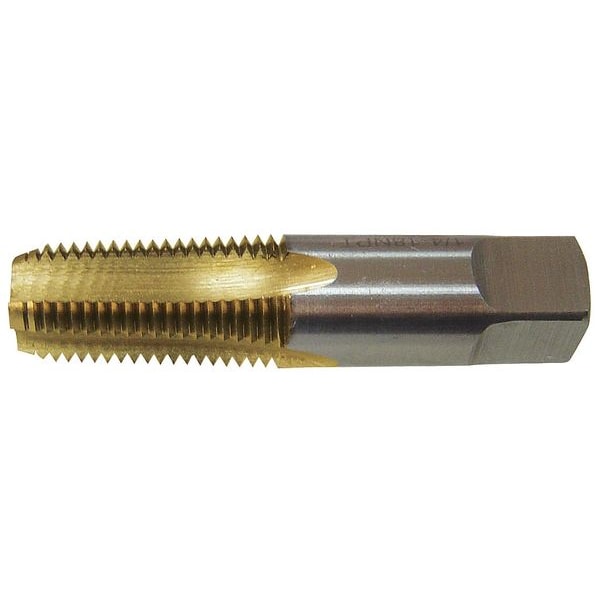

Pipe Tap, 1/4"-18, Semi-Bottoming, 4 Flutes, NPT

  • Mfr # 5TWY0
  • Zoro # G1364727
product price:
$
30.99
/ea

Key Features

Tap Thread Size
1/4"-18
Tap Chamfer
Semi-Bottoming
Number of Flutes
4
Tap Thread Type
NPT
Tap Finish
TiN
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5TWY0
Zoro #
G1364727
UPC #
190735877364
Country of Origin
China

Dimensions

Tap Thread Size
1/4"-18
Shank Dia.
9/16"
Tap Dimension Type
Pipe
Thread Length
1-1/16"
Overall Length
2-7/16"
Tap Size
1/4"
Size
1/4
Shank Length
1 3/8 in
Square Size
0.4210 in
Drill Bit Size
7/16 in
Thread Size
1/4"-18
75% Thread Drill Size
0.4375 in
Pitch Diameter Limit
Not Rated
Square Width
0.42 in
Square Length
0.42 in
Shank Diameter
9/16 in
Wire Rope Length
2 7/16 in
Length
2 7/16 in

Details

Item
Pipe Tap
Tap Chamfer
Semi-Bottoming
Number of Flutes
4
Tap Thread Type
NPT
Tap Finish
TiN
Tap Style
Pipe
Tap Grouping
Tap
Thread Direction
Right Hand
Standards
ASME
Tap Material
High Speed Steel
Features
For Use With a Wide Variety of Materials
Series
T311-60155
Cutting Direction - Machining
Right Hand
Coolant Fed
Non-Coolant Through
Primary Material Application
Steel
Threads per Inch
18
Thread Standard
NPT
Material Grade - Machining
M2
Measurement System
Fractional Inch
Shank Type - Machining
Straight
Class of Fit
1B
Flute Type
Straight
Number of Pieces
1
Secondary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper
Tap Application
Through Hole
Primary Material Application ISO Code
P
Secondary Material Application ISO Code
K, N
Interrupted Thread
No
Helix Angle
0 Degrees
List Number
311-6
Hook
High
Maximum Projection
29/64 in
Shank Type
Straight
Impact Rated
Not Impact Rated

Description

Pipe and Conduit Thread Tap, Thread Size 1/4 In.-18, NPT, Overall Length 2 7/16 in, High Speed Steel, TiN, Right Hand, Thread Length 1 1/16 in, 75 Percent Thread Drill Size 0.4375 in, Thread Limit Not Applicable, Class of Fit 1B, Number of Flutes 4
