Shop ZORO SELECT

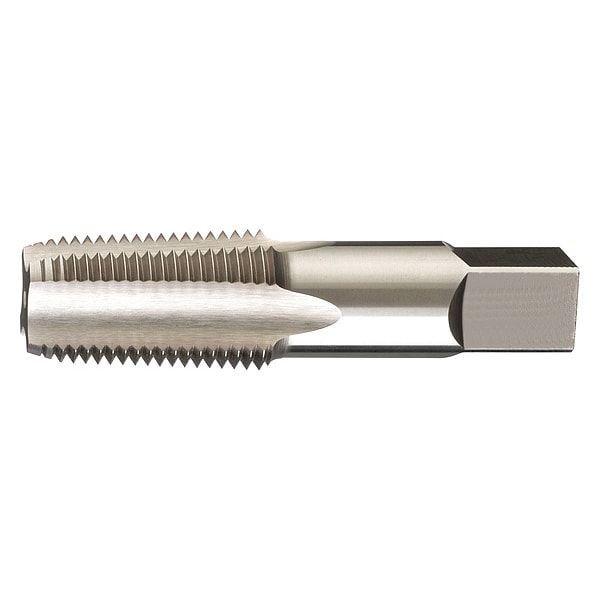

Pipe Tap, 3/4"-14, Taper, 5 Flutes, BSPP

  • Mfr # 16526

  • Zoro # G0247637

product price:  $144.99
/ea
Free Shipping & Returns

Key Features

Tap Thread Size
3/4"-14
Tap Chamfer
Taper
Number of Flutes
5
Tap Thread Type
BSPP
List Number
16529
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
16526
Zoro #
G0247637
UPC #
-
Country of Origin
United States

Dimensions

Tap Thread Size
3/4"-14
Tap Dimension Type
Pipe
Thread Length
1-3/8"
Pitch Diameter Limit
Not Rated
Overall Length
3-1/4"
Shank Dia.
0.9063"
Tap Size
3/4"
Thread Size
3/4"-14
75% Thread Drill Size
0.9063 in
Tap Length Standard
USCTI
Square Size
0.6790 in
Shank Length
1 55/64 in
Drill Bit Size
59/64 in
Size
3/4"
Square Length
0.68 in
Square Width
0.68 in
Shank Diameter
29/32 in

Details

Item
Pipe Tap
Tap Chamfer
Taper
Number of Flutes
5
Tap Thread Type
BSPP
List Number
16529
Tap Finish
Bright (Uncoated)
Tap Material
High Speed Steel
Thread Direction
Right Hand
Standards
USCTI
Number of Pieces
1
Tap Grouping
Tap
Tap Style
Pipe
Cutting Direction - Machining
Right Hand
Series
16526
Extended Neck
Yes
Thread Standard
BSPT
Material Grade - Machining
16529
Tap Shank Standard
USCTI
Threads per Inch
14
Measurement System
Fractional Inch
Helix Angle
0 Degrees
Primary Material Application ISO Code
H, K, N, P
Shank Type
Square
Primary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Hardened Steel, Steel, Tool and Die Steel
Maximum Projection
1 3/8 in
Interrupted Thread
No
Tap Application
Blind Hole, Through Hole
Impact Rated
Not Impact Rated
Flute Type
Straight

Description

Pipe and Conduit Thread Tap, Thread Size 3/4 In.-14, BSPT, Overall Length 3 1/4 in, High Speed Steel, Bright (Uncoated), Right Hand, Thread Length 1 3/8 in, 75 Percent Thread Drill Size 0.9063 in, Thread Limit Not Applicable, Class of Fit Not Applicable, Number of Flutes 5
