  11. Plate Caster, 120 lb. Load Rating, Rigid

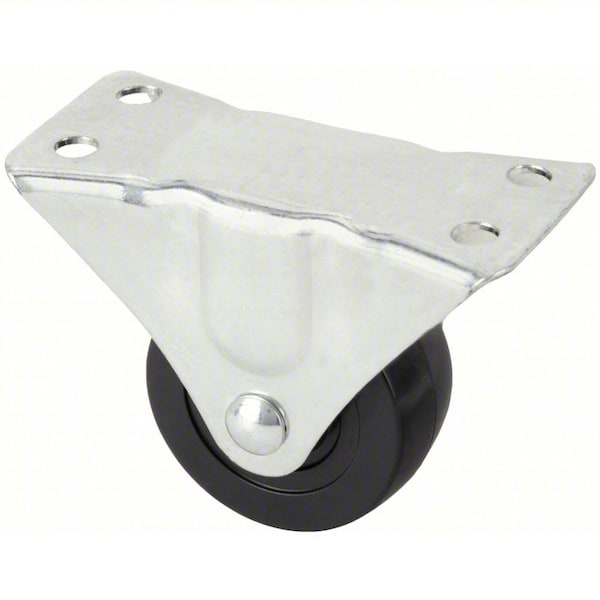

Zoro Select Plate Caster, 120 lb. Load Rating, Rigid P5R-R030G-P - main

Plate Caster, 120 lb. Load Rating, Rigid

  • Mfr # P5R-R030G-P

  • Zoro # G3323794

product price: $3.95
/ea

Key Features

Caster Sub-Type
Rigid
System of Measurement
Inch
Wheel/Tread Material
Rubber
Caster Brake Type
No Brake
Wheel Dia.
3 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P5R-R030G-P
Zoro #
G3323794
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
3 in
Wheel Width
13/16 in
Mounting Height
3 1/2 in
Mounting Plate Size
1-3/4in x 2-5/8in
Mounting Plate Thickness
5/64in
Mounting Bolt Dia.
5/16 in
Overall Height
3-1/2in
Swivel Radius
None- Rigid Caster
Bolt Hole Spacing - Length
0.969 in
Mounting Plate Length
1 3/4 in
For Axle Dia.
5/16 in
Bolt Hole Spacing - Width
2.125 in
Overall Wheel Width
13/16 in

Details

Item
Rigid Caster
Caster Sub-Type
Rigid
System of Measurement
Inch
Wheel/Tread Material
Rubber
Caster Brake Type
No Brake
Load Rating
120 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Plain
Wheel/Tread Color
Black
Wheel Hardness Rating
80 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Black
Non-Marking
No
Number of Wheels
1
Outside Bolt Hole Spacing
31/32 in x 2-1/8 in
Inside Bolt Hole Spacing
31/32 in x 2-1/8 in
Caster Plate Hole Pattern
D
Extended Lead
No
Thread Guards
No
Application
Retail, Industrial, Commercial
Caster Brake Included
No
Features
Noise Reduction
Wheel Color
Black
Caster Temp. Range Available
Yes
Standards
RoHS, ICWM
Frame Finish
Zinc Plated
Swivel Lock Type
No Lock Included
Operating Temperature Range
-20 Degrees To 125 Degrees F
Includes Thread Guards
No
Wheel/Tread Hardness Rating
Soft
Load Rating Range
Light-Duty
Wheel Core Material
Rubber
Series
P5 Series
ESD Conductive
No
Load Capacity
120 lb
Tread
Standard
Resistant To
Chemical Resistance To Many Aggressive Substances, Except Oils
Tread Color
Black
Load Capacity - Maximum
120 lb
Wheel Core Type
Solid
Caster Features
Corrosion-Resistant
Mounting Hole Type
Hole
Mounting Plate Shape
Rectangle
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel
Operating Temperature - Maximum
160 Degrees F
Operating Temperature - Minimum
-15 Degrees F

Description

Rigid, Plate Caster, Load Rating 120 lb, Swivel Lock Type No Lock Included, Wheel Dia. 3 in, Wheel Width 13/16 in, Wheel/Tread Material Rubber, Wheel Core Material Rubber, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
