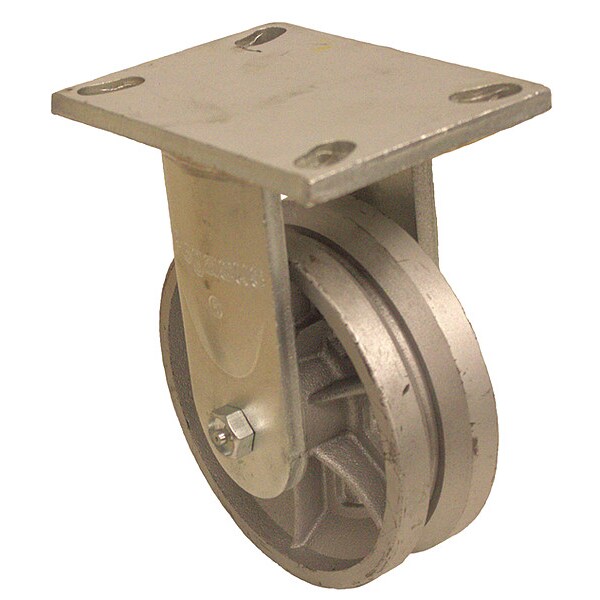

Zoro Select Plate Caster, 1200 lb. Ld Rating, Roller P23R-C080R-16-VG1 - main

Plate Caster, 1200 lb. Ld Rating, Roller

  • Mfr # P23R-C080R-16-VG1

  • Zoro # G3317449

product price:  $83.39
/ea

Key Features

Caster Plate Hole Pattern
A
Mounting Bolt Dia.
1/2 in
Caster Brake Included
No
Caster Frame Material
Steel
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P23R-C080R-16-VG1
Zoro #
G3317449
UPC #
-
Country of Origin
China

Dimensions

Mounting Bolt Dia.
1/2 in
Wheel Dia.
8 in
Wheel Width
2 in
Overall Height
10-1/2in
Swivel Radius
None- Rigid Caster
Mounting Plate Size
4-1/2 in x 6-1/4 in
Mounting Height
10 1/2 in
For Axle Dia.
1/2 in
Inside Slot Spacing - Width
2.438 in
Inside Slot Spacing - Length
4.938 in
Mounting Plate Length
4 1/2 in
Mounting Plate Thickness
0.276 in
Outside Slot Spacing - Length
5.25 in
Overall Wheel Width
2 in

Details

Caster Plate Hole Pattern
A
Caster Brake Included
No
Caster Frame Material
Steel
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Application
Dollies, Floor Trucks, Material Handling Containers, Platform Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Standards
ANSI ICWM, NSF Listed
Frame Finish
Zinc Plated
Core Color
Gray
Features
Angle Iron Track Compatible
Non-Marking
No
Number of Wheels
1
Wheel Color
Silver
Item
Rigid Caster
Thread Guards
No
Load Rating
1200 lb
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Caster Sub-Type
Rigid
Extended Lead
No
Caster Temp. Range Available
Yes
Replacement Wheel
Mfr. No. P-C-080x020/050R-VG1
Caster Brake Type
No Brake
Includes Thread Guards
No
Wheel/Tread Material
Cast Iron
Load Rating Range
Heavy Duty
Swivel Lock Type
No Lock Included
Tread Shape
Standard
Wheel Core Material
Cast Iron
Number of Mounting Holes
4
Wheel/Tread Hardness Rating
Extra Hard
Wheel Bearing Type
Roller
System of Measurement
Inch
ESD Conductive
No
Tread Color
Silver
Series
P23 Series
Caster Mounting Type
Plate
Resistant To
High Chemical Resistance To Many Aggressive Substances
Tread
Standard
Load Capacity
1400 lb
Load Capacity - Maximum
1,250 lb
Compatible With
P-C-080X020/050R-VG1
Wheel Hardness Rating
180-220 BHN
Caster Features
Corrosion-Resistant
Mounting Plate Shape
Rectangle
For Surface Type
Grease, Metal Scrap, Oil, Rubber, Steel, Wood
Mounting Hole Type
Slot
Wheel Bearing Material
Steel
Wheel Core Type
Spoke
Operating Temperature - Maximum
250 Degrees F
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature Range
Up To 800 Degrees F

Description

Rigid, Plate Caster, Load Rating 1200 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Iron, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape V-Groove
