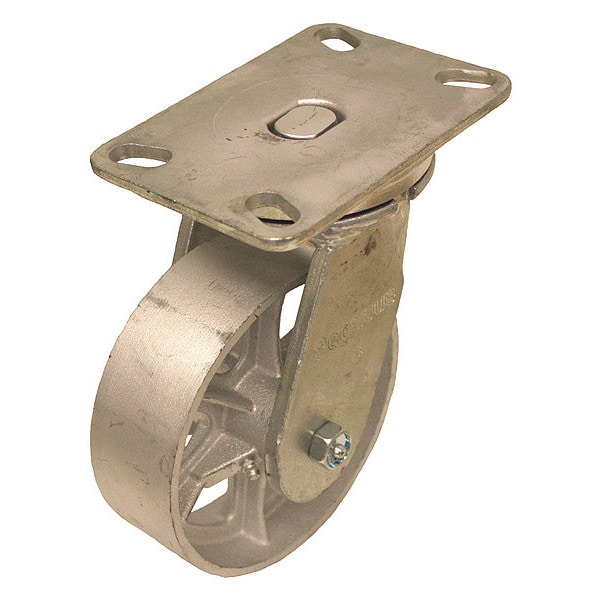

Plate Caster, 1200 lb. Ld Rating, Roller

product price: $65.69
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Brake Included No
  • Caster Load Rating Range Heavy Duty
  • Caster Sub-Type Swivel
  • Caster Wheel Shape Standard
  • Caster Wheel/Tread Material Cast Iron
See all product information

Product Information

Dimensions

Overall Height 8 in
Wheel Dia. 6 in
Wheel Width 2 in
Caster Plate Size 4-1/2 in x 6-1/4 in
Swivel Radius 5 in
Mounting Bolt Dia. 1/2 in
Mounting Height 8 in
Mounting Plate Size 4 1/2 in x 6 1/4 in

Details

Caster Brake Included No
Caster Load Rating Range Heavy Duty
Caster Sub-Type Swivel
Caster Wheel Shape Standard
Caster Wheel/Tread Material Cast Iron
Load Rating 1200 lb
Number of Wheels 1
Plate Caster Bolt Hole Pattern A
Caster Plate Thickness 0.276 in
Wheel Color Silver
Application Retail, Industrial, Commercial
Core Color Gray
Replacement Wheel Mfr. No. P-C-060x020/050R
Outside Bolt Hole Spacing 3-3/8 in x 5-1/4 in
Frame Finish Zinc Plated
Caster Temp. Range Available Yes
Caster Raceway Double Ball
Inside Bolt Hole Spacing 2-7/16 in x 4-15/16 in
Features Push/Pull Force Reduction
Caster Frame Material Forged Steel
Caster Product Group Swivel Caster
Caster Max. Temp. 250 Degrees F
Caster Wheel Bearings Roller
Caster Min. Temp. -20 Degrees F
Standards RoHS, ICWM
Item Swivel Plate Caster
Caster Swivel Lock Type No Lock Included
Thread Guards No
Durometer 180 to 220 BHN
Caster Plate Hole Pattern A
Caster Core Material Cast Iron
Non-Marking No
Extended Lead No
Caster Brake Type No Brake Included
Caster Temp. Range Up To 800 Degrees F
Wheel/Tread Hardness 180-220 HB
Includes Thread Guards No
Swivel Raceway Type Double Ball
Mounting Plate Bolt Hole Pattern A
Wheel/Tread Hardness Rating Extra Hard
Number of Mounting Holes 4
Tread Shape Standard
Wheel Bearing Type Roller
Swivel Lock Type No Lock Included
Wheel/Tread Material Iron
Swivel Construction Kingpin
Wheel Core Material Cast Iron
Wheel/Tread Color Silver
System of Measurement Inch
Resistant To High Chemical Resistance To Many Aggressive Substances
Caster Break Type No Brake Included
Tread Color Silver
Tread Standard
Load Capacity 1200 lb
Caster Mounting Type Plate
ESD Conductive No
Series P23 Series

Description

Swivel, Standard Plate Caster, Load Rating 1200 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Iron, Wheel Core Material Cast Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake Included, Tread Shape Standard
