Shop ZORO SELECT

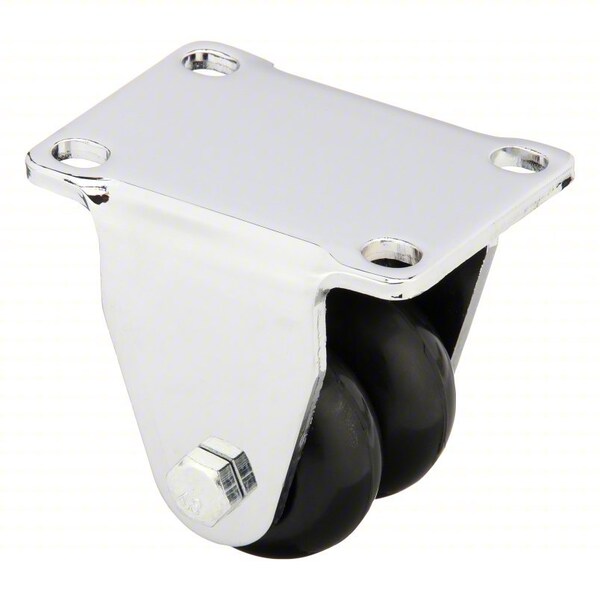

Plate Caster, 145 lb. Load Rating, Rigid

  • Mfr # P9R-SRP020K-P-CF

  • Zoro # G3317029

product price:
$
20.69
/ea

Key Features

Overall Height
2-3/4"
Tread Shape
Standard
Load Rating Range
Light-Duty
Includes Thread Guards
No
Swivel Lock Type
No Lock Included
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P9R-SRP020K-P-CF
Zoro #
G3317029
UPC #
-
Country of Origin
China

Dimensions

Overall Height
2-3/4"
Mounting Plate Size
2-1/2in x 3-5/8in
Mounting Height
3 1/4 in
Wheel Dia.
2 in
Swivel Radius
None- Rigid Caster
Wheel Width
1 in
Mounting Bolt Dia.
5/16 in
For Axle Dia.
5/16 in
Mounting Plate Length
3 5/8 in
Inside Slot Spacing - Length
2.75 in
Mounting Plate Width
2 1/2 in
Bolt Hole Spacing - Length
1.75 in
Overall Wheel Width
1 in
Outside Slot Spacing - Length
3 in
Mounting Plate Thickness
1/8 in

Details

Tread Shape
Standard
Load Rating Range
Light-Duty
Includes Thread Guards
No
Swivel Lock Type
No Lock Included
Wheel/Tread Hardness Rating
Soft
Wheel Bearing Type
Ball
Wheel/Tread Material
Rubber
Number of Mounting Holes
4
Operating Temperature Range
-15 Degrees to 160 Degrees F
Wheel Core Material
Polyolefin
Wheel/Tread Color
Black
System of Measurement
Inch
Core Color
Black
Includes
Thread Guards
Outside Bolt Hole Spacing
1-3/4 in x 3 in
Standards
ANSI ICWM
Inside Bolt Hole Spacing
1-3/4 in x 2-3/4 in
Non-Marking
Yes
Tread Color
Gray
Number of Wheels
2
ESD Conductive
No
Application
Carts, Fixtures, Furniture, Institutional Equipment, Medical Equipment
Caster Brake Included
No
Caster Frame Material
Steel
Wheel Color
Black
Resistant To
High Chemical Resistance To Many Aggressive Substances
Thread Guards
Yes
Load Capacity
145 lb
Series
P9 Series
Item
Plate Caster
Load Rating
145 lb
Caster Sub-Type
Rigid
Caster Mounting Type
Plate
Frame Finish
Chrome
Tread
Standard
Caster Temp. Range Available
Yes
Caster Brake Type
No Brake
Features
Floor Protective, Noise Reduction
Caster Plate Hole Pattern
C
Extended Lead
No
Wheel Hardness Rating
75 Shore A
Load Capacity - Maximum
250 lb
Wheel Bearing Material
Steel
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Operating Temperature - Minimum
-15 Degrees F
Operating Temperature - Maximum
160 Degrees F

Description

Rigid, Plate Caster, Load Rating 145 lb, Swivel Lock Type No Lock Included, Wheel Dia. 2 in, Wheel Width 1 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 2, Caster Brake Type No Brake, Tread Shape Standard
