  11. Plate Caster, 165 lb. Ld Rating, Swivel
Zoro Select Plate Caster, 165 lb. Ld Rating, Swivel P17S-RP030K-12-TB - main

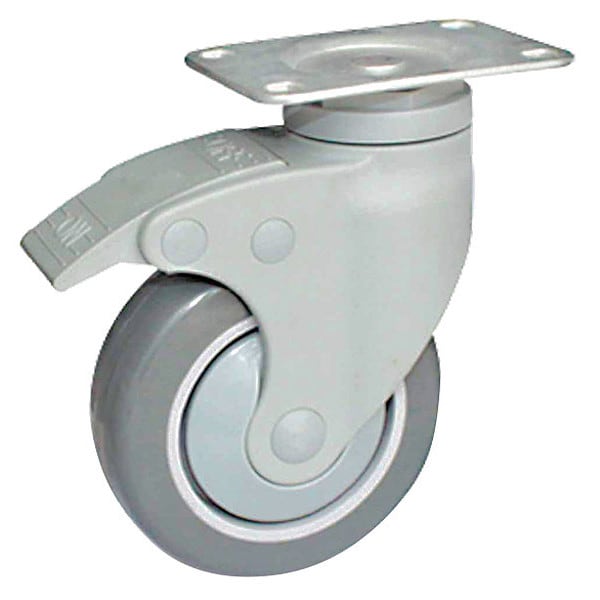

Plate Caster, 165 lb. Ld Rating, Swivel

  • Mfr # P17S-RP030K-12-TB

  • Zoro # G1619184

product price: $24.39
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Thermoplastic Rubber
Caster Brake Type
Total Lock
Wheel Dia.
3 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P17S-RP030K-12-TB
Zoro #
G1619184
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
3 in
Wheel Width
1 1/4 in
Mounting Height
4 7/8 in
Mounting Plate Size
2-1/2in x 3-5/8in
Mounting Plate Thickness
1/8in
Mounting Bolt Dia.
5/16 in
Swivel Radius
3-1/16 in
Overall Height
4-7/8in
Overall Wheel Width
1 1/4 in
Inside Slot Spacing - Width
1.75 in
Outside Slot Spacing - Length
3.063 in
Inside Slot Spacing - Length
2.813 in
Outside Slot Spacing - Width
1.75 in
For Axle Dia.
8 mm
Mounting Plate Length
2 1/2 in

Details

Item
Swivel Caster with Total Lock
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Thermoplastic Rubber
Caster Brake Type
Total Lock
Load Rating
165 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Wheel/Tread Color
Gray
Wheel Hardness Rating
90 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Nylon
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Caster Plate Hole Pattern
C
Caster Brake Included
Yes
Standards
RoHS, ICWM
Wheel Color
Gray
Extended Lead
No
Thread Guards
Yes
Features
Noise Reduction
Caster Temp. Range Available
Yes
Frame Finish
Unfinished
Includes
Total-Lock, Thread Guards
Application
Retail, Industrial, Commercial
Swivel Raceway Type
Single Ball
Includes Thread Guards
Yes
Wheel Core Material
Polypropylene
Swivel Lock Type
Total Lock
Load Rating Range
Light-Duty
Swivel Construction
Kingpin
Wheel/Tread Hardness Rating
Firm
ESD Conductive
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Series
P17 Series
Tread
Standard
Tread Color
Gray
Load Capacity
165 lb
Load Capacity - Maximum
165 lb
Wheel Bearing Material
Steel
Wheel Core Type
Solid
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Mounting Hole Type
Slot
Brake Location
Rear
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Plate Shape
Rectangle
Operating Temperature Range
-4 Degrees To 140 Degrees F
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-20 Degrees F

Description

Swivel, Plate Caster, Load Rating 165 lb, Swivel Lock Type Total Lock, Wheel Dia. 3 in, Wheel Width 1 1/4 in, Wheel/Tread Material Thermoplastic Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
