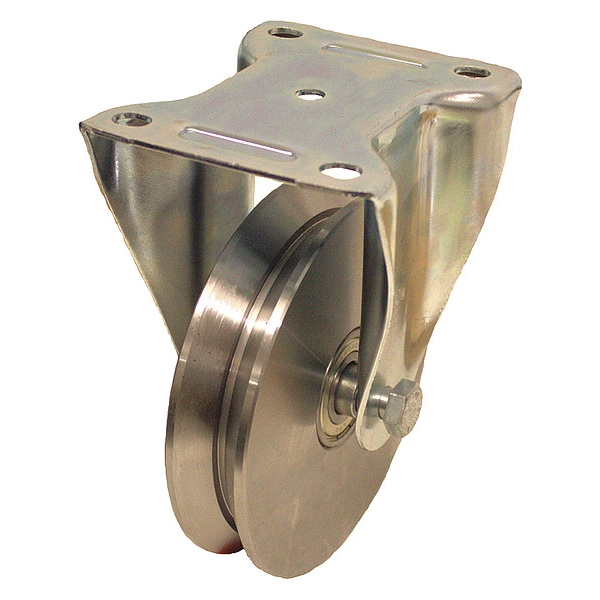

Zoro Select Plate Caster, 1650 lb. Ld Rating, Ball BH-DSPK 200K - main

Plate Caster, 1650 lb. Ld Rating, Ball

  • Mfr # BH-DSPK 200K

  • Zoro # G7278551

product price:  $250.99
/ea
Free Shipping & Returns

Key Features

Application
Dollies, Floor Trucks, Material Handling Containers, Platform Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Caster Sub-Type
Rigid
Load Rating
1650 lb
Standards
DIN EN 12532, ANSI ICWM
Inside Bolt Hole Spacing
75 mm x 105 mm
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
BH-DSPK 200K
Zoro #
G7278551
UPC #
-
Country of Origin
Germany

Dimensions

Swivel Radius
None- Rigid Caster
Mounting Bolt Dia.
3/8 in
Wheel Dia.
8 in
Overall Height
9-21/32in
Wheel Width
1 5/16 in
Recommended Track Size
1-1/2 in x 1-1/2 in; 1/4 in x 1/4 in
Mounting Height
9 5/8 in
Mounting Plate Size
110 mm x 140 mm
Overall Wheel Width
1 5/16 in
Mounting Plate Length
140 mm
Mounting Plate Thickness
4 mm
Inside Slot Spacing - Length
75 mm
Bolt Hole Spacing - Length
4.125 in
Mounting Plate Width
110 mm
Outside Slot Spacing - Width
80 mm
For Axle Dia.
12 mm

Details

Application
Dollies, Floor Trucks, Material Handling Containers, Platform Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Caster Sub-Type
Rigid
Load Rating
1650 lb
Standards
DIN EN 12532, ANSI ICWM
Inside Bolt Hole Spacing
75 mm x 105 mm
Number of Wheels
1
Caster Plate Hole Pattern
C
Replacement Wheel
Mfr. No. P-DSPK 200K
Non-Marking
No
Wheel Color
Silver
Extended Lead
No
Item
Rigid Caster
Frame Finish
Zinc Plated
Thread Guards
No
Caster Brake Included
No
Core Color
Silver
Outside Bolt Hole Spacing
80 mm x 105 mm
Features
Angle Iron Track Compatible
Caster Temp. Range Available
Yes
Caster Frame Material
Steel
Caster Brake Type
No Brake
Load Rating Range
Medium Duty
Wheel/Tread Hardness Rating
Extra Hard
Wheel Core Material
Steel
Wheel/Tread Material
Solid Steel
Clearance on 1-1/4" Track
3/8 in
Includes Thread Guards
No
Tread Shape
V-Groove
Swivel Lock Type
No Lock Included
Wheel Bearing Type
Precision Ball
Number of Mounting Holes
4
Clearance on 1-1/2" Track
9/16 in
System of Measurement
Metric
Series
BH Series
Tread
V-Groove
ESD Conductive
No
Load Capacity
1000 kg
Tread Color
Silver
Resistant To
High Chemical Resistance To Many Aggressive Substances
Caster Mounting Type
Plate
Compatible With
P-DSPK 200K
Load Capacity - Maximum
1,985 lb
Wheel Core Type
Solid
Caster Features
Corrosion-Resistant
For Surface Type
Grease, Metal Scrap, Oil, Rubber, Steel, Wood
Wheel Hardness Rating
190-230 BHN
Mounting Plate Shape
Rectangle
Wheel Bearing Material
Steel
Mounting Hole Type
Slot
Operating Temperature Range
-25 Degrees To 120 Degrees C
Operating Temperature - Minimum
-15 Degrees F
Operating Temperature - Maximum
250 Degrees F

Description

Rigid, Plate Caster, Load Rating 1650 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 1 5/16 in, Wheel Core Material Steel, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape V-Groove
