  11. Plate Caster, 175 lb. Load Rating

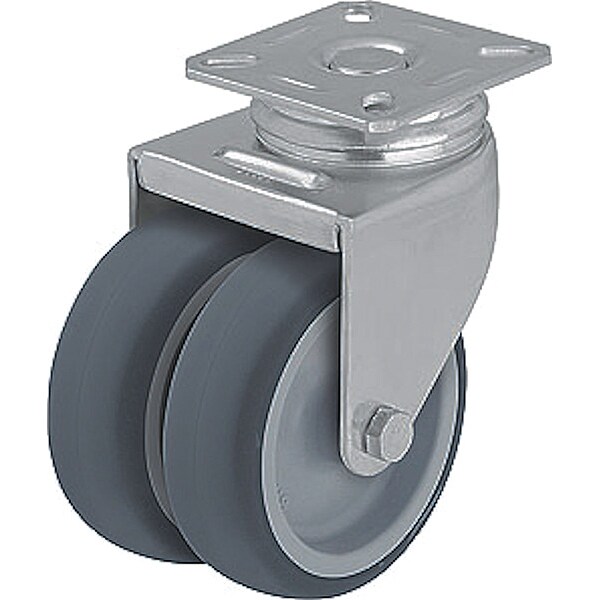

Zoro Select Plate Caster, 175 lb. Load Rating LDA-TPA 50G - main

Plate Caster, 175 lb. Load Rating

  • Mfr # LDA-TPA 50G

  • Zoro # G8518139

product price: $11.45
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Thermoplastic Rubber
Caster Brake Type
No Brake
Wheel Dia.
2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LDA-TPA 50G
Zoro #
G8518139
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
2 in
Wheel Width
3/4 in
Mounting Height
2 13/16 in
Mounting Plate Size
2-3/8in x 2-3/8in
Mounting Plate Thickness
5/64in
Mounting Bolt Dia.
7/32 in
Swivel Radius
56 mm
Overall Height
2-51/64in
For Axle Dia.
6 mm
Mounting Plate Length
60 mm
Inside Slot Spacing - Length
38 mm
Mounting Plate Width
60 mm
Bolt Hole Spacing - Length
1.5 in
Overall Wheel Width
3/4 in
Outside Slot Spacing - Width
48 mm
Outside Slot Spacing - Length
48 mm
Inside Slot Spacing - Width
38 mm

Details

Item
Swivel Caster
Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Thermoplastic Rubber
Caster Brake Type
No Brake
Load Rating
175 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Plain
Wheel/Tread Color
Gray
Wheel Hardness Rating
85 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
2
Outside Bolt Hole Spacing
48 mm x 48 mm
Inside Bolt Hole Spacing
38 mm x 38 mm
Caster Plate Hole Pattern
A
Frame Finish
Zinc Plated
Caster Temp. Range Available
Yes
Replacement Wheel
Mfr. No. TPA 50/8G
Extended Lead
No
Wheel Color
Gray
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Caster Brake Included
No
Thread Guards
No
Standards
RoHS, ICWM
Features
Floor Protective, Reduced Swivel Forces
Wheel/Tread Hardness Rating
Soft
Swivel Construction
Kingpin
Swivel Lock Type
No Lock Included
Includes Thread Guards
No
Wheel Core Material
Polypropylene
Load Rating Range
Light-Duty
Swivel Raceway Type
Double Ball
Tread
Standard
Series
LDA Series
ESD Conductive
No
Tread Color
Gray
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
Load Capacity
80 kg
Load Capacity - Maximum
175 lb
Compatible With
TPA 50/8G
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Core Type
Solid
Mounting Hole Type
Hole
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Mounting Plate Shape
Rectangle
Operating Temperature - Maximum
140 Degrees F
Operating Temperature Range
-20 Degrees To 60 Degrees C
Operating Temperature - Minimum
-10 Degrees F

Description

Swivel, Plate Caster, Load Rating 175 lb, Swivel Lock Type No Lock Included, Wheel Dia. 2 in, Wheel Width 3/4 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 2, Caster Brake Type No Brake, Tread Shape Standard
