  11. Plate Caster, 175 lb. Load Rating, Swivel

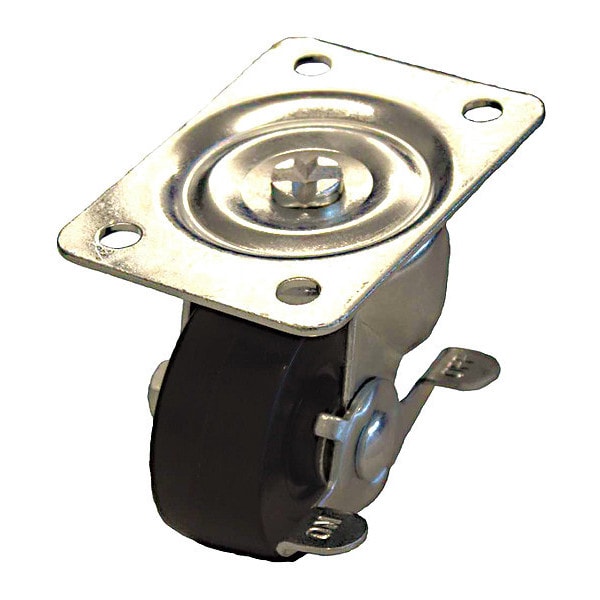

Zoro Select Plate Caster, 175 lb. Load Rating, Swivel P2S-R025G-P-SB - main

Plate Caster, 175 lb. Load Rating, Swivel

  • Mfr # P2S-R025G-P-SB

  • Zoro # G6629441

product price: $8.69
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Rubber
Caster Brake Type
Side Brake
Wheel Dia.
2 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P2S-R025G-P-SB
Zoro #
G6629441
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
2 1/2 in
Wheel Width
1 1/16 in
Mounting Height
3 1/4 in
Mounting Plate Size
2-3/4in x 3-7/8in
Mounting Plate Thickness
7/64in
Mounting Bolt Dia.
5/16 in
Swivel Radius
3-1/2 in
Overall Height
3-1/4in
Bolt Hole Spacing - Length
1.75 in
Bolt Hole Spacing - Width
3 in
For Axle Dia.
5/16 in
Overall Wheel Width
1 1/16 in
Mounting Plate Length
2 3/4 in

Details

Item
Swivel Caster with Brake
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Rubber
Caster Brake Type
Side Brake
Load Rating
175 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Plain
Wheel/Tread Color
Black
Wheel Hardness Rating
80 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Black
Non-Marking
No
Number of Wheels
1
Outside Bolt Hole Spacing
1-3/4 in x 3 in
Inside Bolt Hole Spacing
1-3/4 in x 3 in
Caster Plate Hole Pattern
D
Features
Noise Reduction
Thread Guards
No
Extended Lead
No
Standards
RoHS, ICWM
Application
Retail, Industrial, Commercial
Caster Temp. Range Available
Yes
Frame Finish
Zinc Plated
Wheel Color
Black
Caster Brake Included
Yes
Includes
Pinch Type Brake
Includes Thread Guards
No
Swivel Lock Type
No Lock Included
Wheel/Tread Hardness Rating
Soft
Swivel Raceway Type
Single Ball
Wheel Core Material
Rubber
Swivel Construction
Kingpin
Load Rating Range
Light-Duty
Operating Temperature Range
-15 Degrees to 160 Degrees F
Tread
Standard
Series
P2 Series
Load Capacity
175 lb
Tread Color
Black
Resistant To
Chemical Resistance To Many Aggressive Substances, Except Oils
ESD Conductive
No
Load Capacity - Maximum
175 lb
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
Mounting Hole Type
Hole
Brake Location
Side
Caster Features
Corrosion-Resistant
Operating Temperature - Maximum
160 Degrees F
Operating Temperature - Minimum
-15 Degrees F

Description

Swivel, Plate Caster, Load Rating 175 lb, Swivel Lock Type No Lock Included, Wheel Dia. 2 1/2 in, Wheel Width 1 1/16 in, Wheel/Tread Material Rubber, Wheel Core Material Rubber, Non-Marking No, Number of Wheels 1, Caster Brake Type Side Brake, Tread Shape Standard
