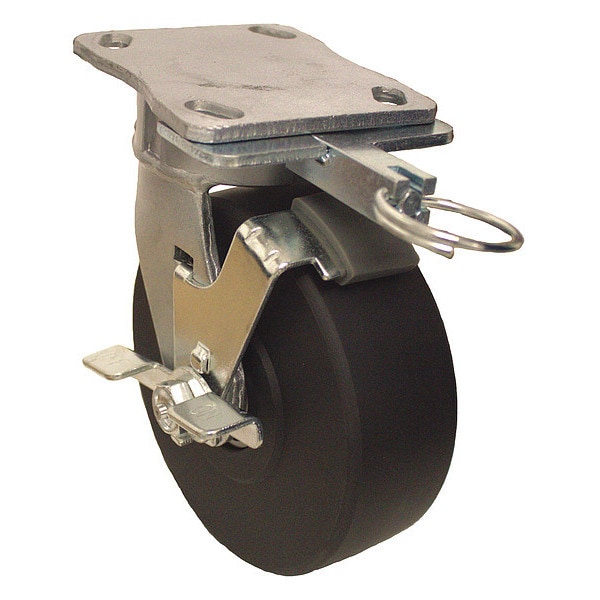

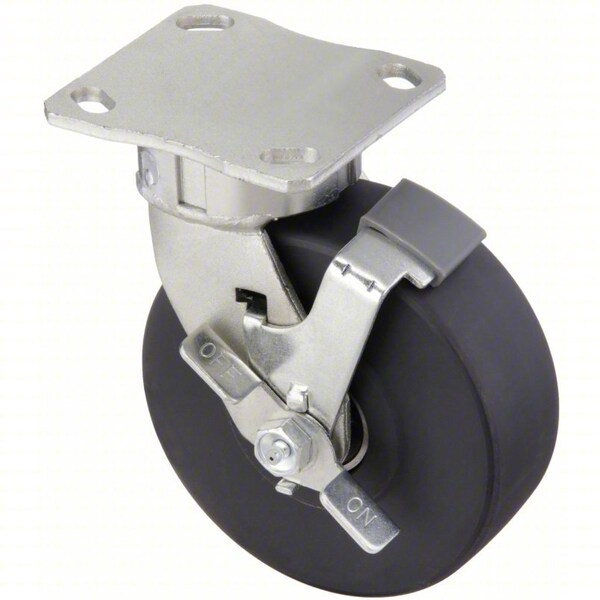

Zoro Select Plate Caster, 1750 lb. Ld Rating, Ball P25S-NMB040K-14-WB-DL - main

Plate Caster, 1750 lb. Ld Rating, Ball

  • Mfr # P25S-NMB040K-14-WB-DL

  • Zoro # G7279102

product price:  $117.99
/ea
Free Shipping & Returns

Key Features

Overall Height
5-5/8in
Non-Marking
Yes
Application
Dollies, Dough Troughs, Platform Trucks, Scrap Metal Carriers, Tooling Fixtures, Tow Lines, Utility Carts
Mounting Bolt Dia.
3/8 in
Wheel Dia.
4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P25S-NMB040K-14-WB-DL
Zoro #
G7279102
UPC #
-
Country of Origin
China

Dimensions

Overall Height
5-5/8in
Mounting Bolt Dia.
3/8 in
Wheel Dia.
4 in
Wheel Width
2 in
Swivel Radius
3 3/8 in
Mounting Plate Size
4 in x 4-1/2 in
Mounting Height
5 5/8 in
Inside Slot Spacing - Width
2.625 in
Outside Slot Spacing - Width
3 in
Mounting Plate Length
4 in
Inside Slot Spacing - Length
3 in
Outside Slot Spacing - Length
3.625 in
Mounting Plate Thickness
0.236 in
For Axle Dia.
1/2 in
Overall Wheel Width
2 in

Details

Non-Marking
Yes
Item
Kingpinless Swivel Caster With Brake And Directional-Lock
Application
Dollies, Dough Troughs, Platform Trucks, Scrap Metal Carriers, Tooling Fixtures, Tow Lines, Utility Carts
Inside Bolt Hole Spacing
3 in x 3 in
Extended Lead
No
Caster Temp. Range Available
Yes
Caster Brake Type
Directional Lock, Side Brake
Thread Guards
No
Caster Plate Hole Pattern
B
Wheel Color
Black
Caster Frame Material
Steel
Core Color
Black
Replacement Wheel
Mfr. No. P-NMB-040x020/050K
Load Rating
1750 lb
Frame Finish
Zinc Plated
Caster Sub-Type
Swivel
Caster Brake Included
Yes
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Number of Wheels
1
Standards
ANSI ICWM
Features
Push/Pull Force Reduction
Includes
Strap Type Brake, 4-Position Directional Lock
Swivel Raceway Type
Single Ball
Number of Mounting Holes
4
Wheel Core Material
Nylon
Tread Shape
Standard
Swivel Lock Type
4-Position Directional Lock
Includes Thread Guards
No
Swivel Construction
Kingpinless
Wheel/Tread Hardness Rating
Hard
Wheel Bearing Type
Precision Ball
Load Rating Range
Medium Duty
Wheel/Tread Material
Machined Nylon
Wheel/Tread Color
Black
System of Measurement
Inch
Resistant To
High Chemical Resistance To Many Aggressive Substances
Tread
Standard
Load Capacity
1500 lb
Series
P25 Series
Tread Color
Black
Caster Mounting Type
Plate
ESD Conductive
No
Load Capacity - Maximum
1,500 lb
Wheel Hardness Rating
75 Shore D
Compatible With
P-NMB-040X020/050K
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Caster Features
Corrosion-Resistant
Wheel Core Type
Solid
Brake Location
Side
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
Wheel Bearing Material
Steel
Operating Temperature Range
-20 Degrees To 250 Degrees F
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature - Maximum
220 Degrees F

Description

Swivel, Plate Caster, Load Rating 1750 lb, Swivel Lock Type 4-Position Directional Lock, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Directional Lock, Side Brake, Tread Shape Standard
