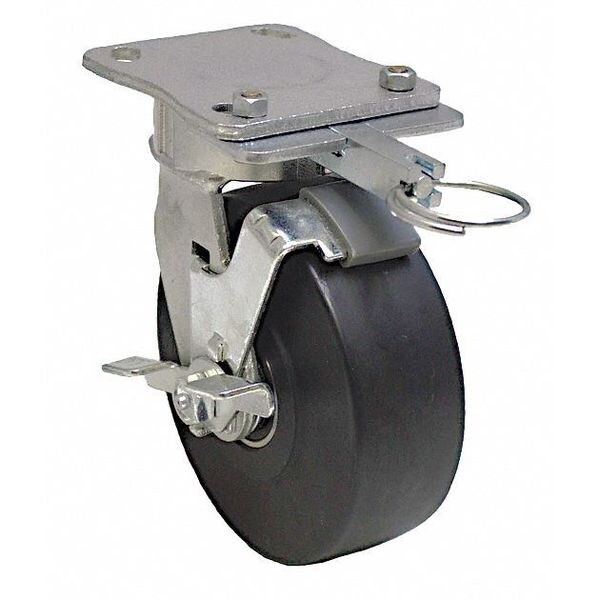

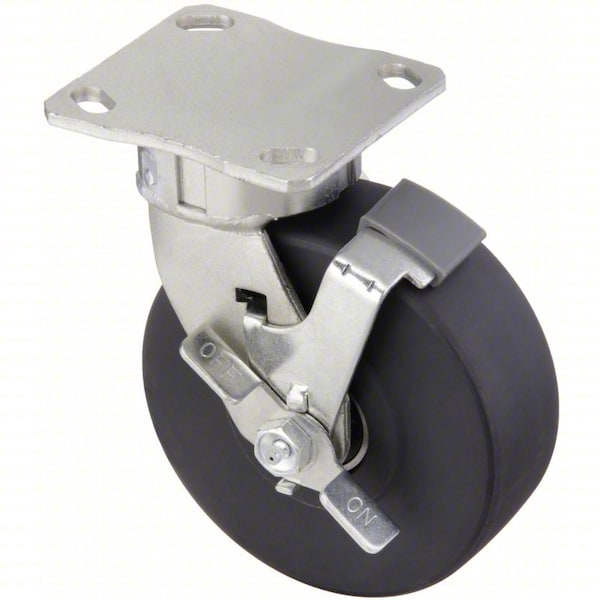

Zoro Select Plate Caster, 1760 lb. Load, Black Wheel P25S-NMB060K-14-WB-DL - main

Plate Caster, 1760 lb. Load, Black Wheel

  • Mfr # P25S-NMB060K-14-WB-DL

  • Zoro # G6573380

product price:  $167.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Machined Nylon
Caster Brake Type
Directional Lock, Side Brake
Wheel Dia.
6 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
P25S-NMB060K-14-WB-DL
Zoro #
G6573380
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
6 in
Wheel Width
2 in
Mounting Height
7 1/2 in
Mounting Plate Size
4 in x 4-1/2 in
Mounting Plate Thickness
0.236 in
Mounting Bolt Dia.
3/8 in
Overall Height
7-1/2in
Swivel Radius
4 3/4 in
For Axle Dia.
1/2 in
Mounting Plate Length
4 in
Inside Slot Spacing - Length
3 in
Outside Slot Spacing - Length
3.625 in
Overall Wheel Width
2 in
Outside Slot Spacing - Width
3 in
Inside Slot Spacing - Width
2.625 in

Details

Item
Kingpinless Swivel Caster With Brake And Directional-Lock
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Machined Nylon
Caster Brake Type
Directional Lock, Side Brake
Load Rating
1760 lb
Wheel Bearing Type
Precision Ball
Wheel/Tread Color
Black
Wheel Hardness Rating
75 Shore D
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Black
Non-Marking
Yes
Number of Wheels
1
Inside Bolt Hole Spacing
3 in x 3 in
Caster Plate Hole Pattern
B
Caster Temp. Range Available
Yes
Caster Brake Included
Yes
Thread Guards
No
Standards
ANSI ICWM
Extended Lead
No
Replacement Wheel
Mfr. No. P-NMB-060x020/050K
Frame Finish
Zinc Plated
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Features
Reduced Push/Pull Force
Wheel Color
Black
Includes
Complete Caster with Directional Lock
Swivel Lock Type
4-Position Directional Lock
Includes Thread Guards
No
Wheel Core Material
Nylon
Load Rating Range
Medium Duty
Swivel Construction
Kingpinless
Swivel Raceway Type
Single Ball
Wheel/Tread Hardness Rating
Hard
Caster Mounting Type
Plate
Resistant To
High Chemical Resistance To Many Aggressive Substances
Series
P25 Series
Load Capacity
1500 lb
Tread Color
Black
ESD Conductive
No
Tread
Standard
Compatible With
P-NMB-060X020/050K
Load Capacity - Maximum
1,500 lb
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
Brake Location
Side
Wheel Bearing Material
Steel
Caster Features
Corrosion-Resistant
Wheel Core Type
Solid
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Operating Temperature - Minimum
-30 Degrees F
Operating Temperature - Maximum
220 Degrees F
Operating Temperature Range
-20 Degrees To 250 Degrees F

Description

Swivel, Plate Caster, Load Rating 1760 lb, Swivel Lock Type 4-Position Directional Lock, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Directional Lock, Side Brake, Tread Shape Standard
