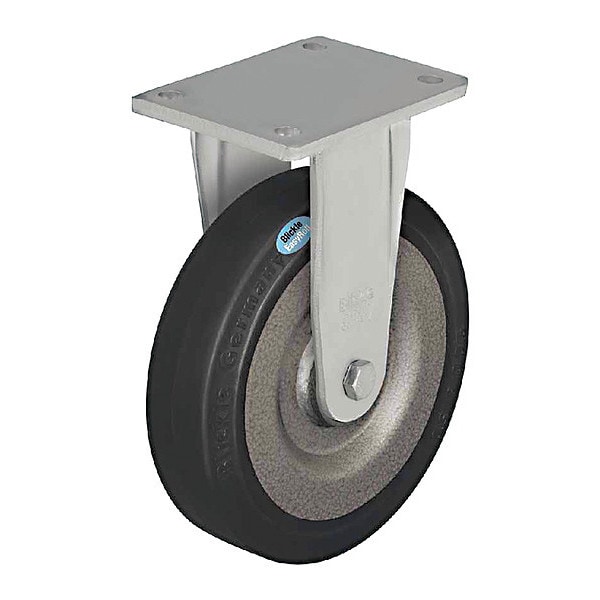

Zoro Select Plate Caster, 1870 lb. Ld Rating, Ball BO-SE 250K - main

Plate Caster, 1870 lb. Ld Rating, Ball

  • Mfr # BO-SE 250K

  • Zoro # G7278658

product price:  $218.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Rigid
Outside Bolt Hole Spacing
80 mm x 105 mm
Caster Frame Material
Steel
Extended Lead
No
Overall Height
11-39/64in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
BO-SE 250K
Zoro #
G7278658
UPC #
-
Country of Origin
Germany

Dimensions

Overall Height
11-39/64in
Wheel Dia.
10 in
Swivel Radius
None- Rigid Caster
Wheel Width
2 1/2 in
Mounting Bolt Dia.
3/8 in
Mounting Height
11 5/8 in
Mounting Plate Size
110 mm x 140 mm
Inside Slot Spacing - Width
2.969 in
Outside Slot Spacing - Width
3.156 in
Outside Slot Spacing - Length
4.125 in
Mounting Plate Length
4 5/16 in
Mounting Plate Thickness
8 mm
For Axle Dia.
12 mm
Inside Slot Spacing - Length
4.125 in
Overall Wheel Width
2 1/2 in

Details

Caster Sub-Type
Rigid
Item
Rigid Caster
Outside Bolt Hole Spacing
80 mm x 105 mm
Caster Frame Material
Steel
Extended Lead
No
Number of Wheels
1
Replacement Wheel
Mfr. No. SE 250/25K
Application
Dollies, Dough Troughs, Platform Trucks, Scrap Metal Carriers, Tooling Fixtures, Tow Lines, Utility Carts
Core Color
Black
Non-Marking
No
Load Rating
1870 lb
Thread Guards
No
Features
Floor Protective
Inside Bolt Hole Spacing
75 mm x 105 mm
Wheel Color
Black
Standards
DIN EN 12532, ANSI ICWM
Frame Finish
Zinc Plated
Caster Brake Included
No
Caster Temp. Range Available
Yes
Caster Plate Hole Pattern
C
Caster Brake Type
No Brake
Wheel Bearing Type
Precision Ball
Includes Thread Guards
No
Load Rating Range
Extra-Heavy Duty
Swivel Lock Type
No Lock Included
Wheel Core Material
Steel
Number of Mounting Holes
4
Wheel/Tread Hardness Rating
Soft
Tread Shape
Standard
Wheel/Tread Material
EasyRoll Elastic Solid Rubber
Wheel/Tread Color
Black
System of Measurement
Metric
Resistant To
Chemical Resistance To Many Aggressive Substances, Except Oils
Series
BO Series
ESD Conductive
No
Load Capacity
850 kg
Tread
Standard
Tread Color
Black
Caster Mounting Type
Plate
Load Capacity - Maximum
1,875 lb
Wheel Hardness Rating
65 Shore A
Compatible With
SE 250/25K
Mounting Hole Type
Slot
Wheel Core Type
Solid
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel
Wheel Bearing Material
Steel
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Mounting Plate Shape
Rectangle
Operating Temperature - Minimum
-15 Degrees F
Operating Temperature Range
-25 Degrees To 80 Degrees C
Operating Temperature - Maximum
180 Degrees F

Description

Rigid, Plate Caster, Load Rating 1870 lb, Swivel Lock Type No Lock Included, Wheel Dia. 10 in, Wheel Width 2 1/2 in, Wheel/Tread Material Rubber, Wheel Core Material Steel, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
