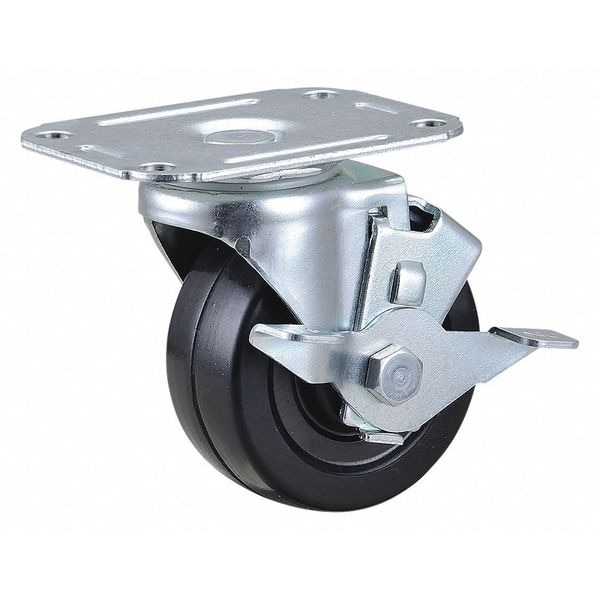

Plate Caster, 198 lb. Load Rating, Swivel

product price: $5.39
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Brake Included Yes
  • Caster Load Rating Range Light-Duty
  • Caster Sub-Type Swivel
  • Caster Wheel Shape Standard
  • Caster Wheel/Tread Material Polyurethane
See all product information

Product Information

Dimensions

Overall Height 3-3/4"
Wheel Dia. 3 in
Wheel Width 1 1/4 in
Stem Dia. No Stem
Swivel Radius 2 23/64 in
Caster Plate Size 2-3/4" x 3-3/4"
Mounting Bolt Dia. 5/16 in
Mounting Height 3 3/4 in
Mounting Plate Size 2 3/4 in x 3 3/4 in

Details

Caster Brake Included Yes
Caster Load Rating Range Light-Duty
Caster Sub-Type Swivel
Caster Wheel Shape Standard
Caster Wheel/Tread Material Polyurethane
Load Rating 195 lb
Number of Wheels 1
Caster Stem Type No Stem/Plate Included
Extended Lead No
Caster Temp. Range Available Yes
Caster Raceway Double Ball
Durometer 85 Shore A
Caster Product Group Swivel Caster with Brake
Caster Brake Type Side Pedal Brake
Caster Plate Thickness 3/32"
Application General Purpose
Core Color Black
Caster Core Material Rubber
Frame Finish Zinc Plated
Caster Wheel Bearings Plain
Replacement Wheel 5UX75
Caster Frame Material Steel
Caster Plate Hole Pattern D
Caster Min. Temp. -40 Degrees F
Caster Max. Temp. 155 Degrees F
Plate Caster Bolt Hole Pattern D
Thread Guards No
Outside Bolt Hole Spacing 1-3/4 in x 3 in
Item Standard Plate Caster
Non-Marking No
Inside Bolt Hole Spacing 1-3/4 in x 3 in
Caster Swivel Lock Type No Lock Included
Wheel Color Black
Swivel Construction Kingpin
Includes Thread Guards No
Wheel Core Material Rubber
Wheel/Tread Hardness 85 Shore A
Mounting Plate Bolt Hole Pattern D
Number of Mounting Holes 4
Wheel Bearing Type Plain
Swivel Raceway Type Double Ball
Wheel/Tread Material Rubber
Swivel Lock Type No Lock Included
Tread Shape Standard
Load Rating Range 0 to 299 lb
Wheel/Tread Hardness Rating Soft
Wheel/Tread Color Black

Description

Swivel, Standard Plate Caster, Load Rating 195 lb, Swivel Lock Type No Lock Included, Wheel Dia. 3 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Wheel Core Material Rubber, Non-Marking No, Number of Wheels 1, Caster Brake Type Side Pedal Brake, Tread Shape Standard
