  6. Plate Caster, 1980 lb. Load Rating

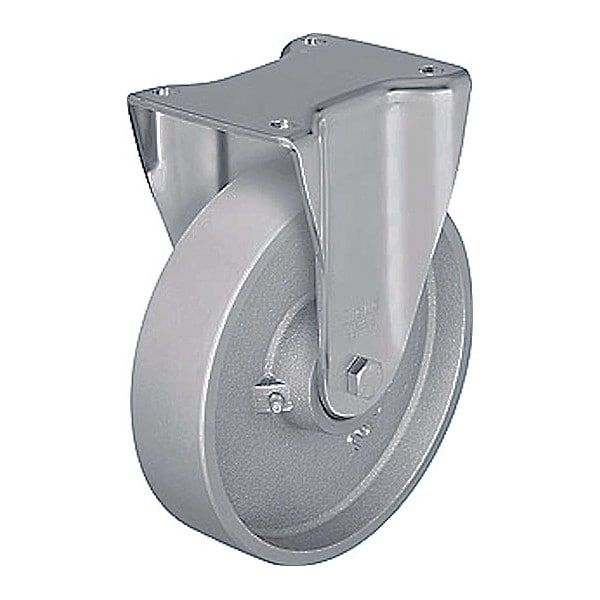

Zoro Select Plate Caster, 1980 lb. Load Rating BH-G 250K - main

Plate Caster, 1980 lb. Load Rating

  • Mfr # BH-G 250K

  • Zoro # G2188442

product price:  $150.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Rigid
System of Measurement
Metric
Caster Brake Type
No Brake
Wheel Dia.
10 in
Wheel Width
2 3/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
BH-G 250K
Zoro #
G2188442
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
10 in
Wheel Width
2 3/8 in
Mounting Height
11 5/8 in
Mounting Plate Thickness
4 mm
Mounting Bolt Dia.
3/8 in
Overall Height
11-39/64in
Swivel Radius
None- Rigid Caster
Mounting Plate Size
110 mm x 140 mm
Outside Slot Spacing - Width
80 mm
Overall Wheel Width
2 3/8 in
Mounting Plate Width
110 mm
Bolt Hole Spacing - Length
4.125 in
Inside Slot Spacing - Length
75 mm
Mounting Plate Length
140 mm
For Axle Dia.
12 mm

Details

Item
Rigid Caster
Caster Sub-Type
Rigid
System of Measurement
Metric
Caster Brake Type
No Brake
Caster Mounting Type
Plate
Wheel/Tread Color
Silver
Number of Mounting Holes
4
Tread Shape
Standard
Core Color
Gray
Non-Marking
No
Outside Bolt Hole Spacing
80 mm x 105 mm
Inside Bolt Hole Spacing
75 mm x 105 mm
Extended Lead
No
Caster Frame Material
Steel
Features
Reduced Push/Pull Forces
Wheel Color
Silver
Caster Brake Included
No
Caster Temp. Range Available
Yes
Standards
DIN EN 12532
Load Rating
1980 lb
Caster Plate Hole Pattern
C
Application
Food Service Racks and Cases, Hotel Equipment, Laundry Trucks, Office Equipment, Stock Carts, Store Fixtures, Utility Carts
Frame Finish
Zinc Plated
Thread Guards
No
Number of Wheels
1
Replacement Wheel
Mfr. No. G 250/25K
Wheel Bearing Type
Precision Ball
Load Rating Range
Heavy Duty
Wheel/Tread Hardness Rating
Extra Hard
Wheel/Tread Material
Cast Iron
Wheel Core Material
Cast Iron
Swivel Lock Type
No Lock Included
Includes Thread Guards
No
ESD Conductive
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Tread Color
Silver
Tread
Standard
Series
BH Series
Load Capacity
900 kg
Load Capacity - Maximum
1,985 lb
Compatible With
G 250/25K
Wheel Bearing Material
Steel
Caster Features
Corrosion-Resistant
For Surface Type
Grease, Metal Scrap, Oil, Rubber, Steel, Wood
Wheel Core Type
Solid
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
Wheel Hardness Rating
180-220 BHN
Operating Temperature - Minimum
-15 Degrees F
Operating Temperature Range
-25 Degrees To 120 Degrees C
Operating Temperature - Maximum
250 Degrees F

Description

Rigid, Plate Caster, Load Rating 1980 lb, Swivel Lock Type No Lock Included, Wheel Dia. 10 in, Wheel Width 2 3/8 in, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
