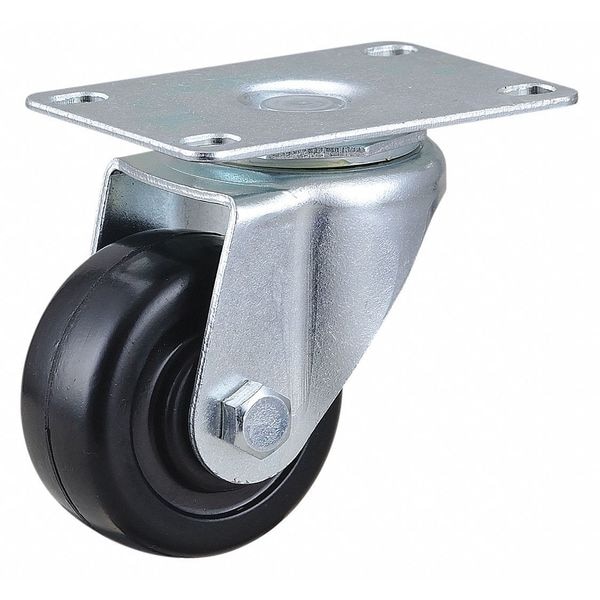

Plate Caster, 2-1/2" Wheel Dia., 70 ShoreD

  • Mfr # 435X95

  • Zoro # G6032953

product price:  $8.29
/ea

Key Features

Wheel Width
1 1/8 in
Caster Plate Hole Pattern
C
Overall Height
3-3/8"
Wheel Dia.
2 1/2 in
Mounting Bolt Dia.
5/16 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
435X95
Zoro #
G6032953
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
1 1/8 in
Overall Height
3-3/8"
Wheel Dia.
2 1/2 in
Mounting Bolt Dia.
5/16 in
Stem Dia.
No Stem
Mounting Plate Size
2 1/2 in x 3 5/8 in
Mounting Height
3 3/8 in
Mounting Plate Thickness
3/32in

Details

Caster Plate Hole Pattern
C
Item
Plate Caster
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Non-Marking
No
Caster Temp. Range Available
No
Caster Frame Material
Steel
Thread Guards
No
Frame Finish
Zinc Plated
Core Color
Black
Load Rating
175 lb
Standards
ANSI, ANSI ICWM
Application
General Purpose
Extended Lead
No
Caster Brake Included
No
Caster Stem Type
No Stem/Plate Included
Wheel Color
Black
Caster Sub-Type
Swivel
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Number of Wheels
1
System of Measurement
Inch
Caster Brake Type
No Brake
Number of Mounting Holes
4
Tread Shape
Standard
Wheel Bearing Type
Delrin
Load Rating Range
0 to 299 lb
Swivel Lock Type
No Lock Included
Wheel Core Material
Rubber
Wheel/Tread Hardness Rating
Hard
Swivel Raceway Type
Double Ball
Swivel Construction
Kingpin
Includes Thread Guards
No
Wheel/Tread Material
Rubber
Wheel/Tread Color
Black
Wheel Hardness Rating
70 Shore D
Load Capacity - Maximum
175 lb
Operating Temperature - Maximum
155 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Caster Mounting Type
Plate

Description

Swivel, Plate Caster, Load Rating 175 lb, Swivel Lock Type No Lock Included, Wheel Dia. 2 1/2 in, Wheel Width 1 1/8 in, Wheel/Tread Material Rubber, Wheel Core Material Rubber, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
