  6. Plate Caster, 2" Wheel Dia., 75 lb., Gray

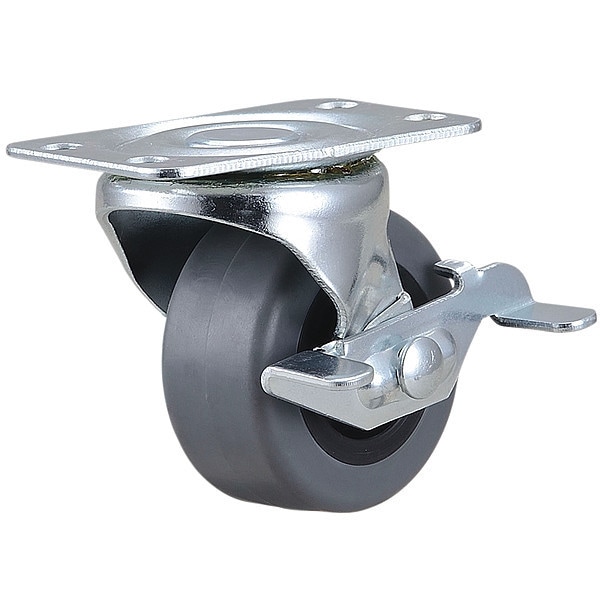

Zoro Select Plate Caster, 2" Wheel Dia., 75 lb., Gray 435X75 - main

Plate Caster, 2" Wheel Dia., 75 lb., Gray

  • Mfr # 435X75

  • Zoro # G6033041

product price:  $4.15
/ea

Key Features

Outside Bolt Hole Spacing
15/16 in x 2-1/8 in
Standards
ANSI, ANSI ICWM
Thread Guards
No
Caster Sub-Type
Swivel
Load Rating
75 lb
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
435X75
Zoro #
G6033041
UPC #
-
Country of Origin
China

Dimensions

Stem Dia.
No Stem
Mounting Bolt Dia.
1/4 in
Overall Height
2-15/32in
Wheel Dia.
2 in
Wheel Width
1 in
Mounting Plate Size
1 7/8 in x 2 9/16 in
Mounting Height
2 7/16 in
Mounting Plate Thickness
5/64in

Details

Outside Bolt Hole Spacing
15/16 in x 2-1/8 in
Standards
ANSI, ANSI ICWM
Thread Guards
No
Caster Sub-Type
Swivel
Load Rating
75 lb
Core Color
Black
Caster Frame Material
Steel
Inside Bolt Hole Spacing
15/16 in x 2-1/8 in
Caster Plate Hole Pattern
D
Extended Lead
No
Frame Finish
Zinc Plated
Non-Marking
Yes
Number of Wheels
1
Caster Temp. Range Available
No
Caster Brake Included
Yes
Application
General Purpose
Wheel Color
Gray
Caster Stem Type
No Stem/Plate Included
Caster Brake Type
Side Brake
Item
Plate Caster
System of Measurement
Inch
Wheel Core Material
Polyolefin
Number of Mounting Holes
4
Swivel Raceway Type
Single Ball
Swivel Lock Type
No Lock Included
Load Rating Range
0 to 299 lb
Tread Shape
Standard
Swivel Construction
Kingpin
Wheel Bearing Type
Plain
Includes Thread Guards
No
Wheel/Tread Hardness Rating
Soft
Wheel/Tread Material
Rubber
Wheel/Tread Color
Gray
Load Capacity - Maximum
75 lb
Wheel Hardness Rating
75 Shore A
Operating Temperature - Maximum
175 Degrees F
Operating Temperature - Minimum
-40 Degrees F

Description

Swivel, Plate Caster, Load Rating 75 lb, Swivel Lock Type No Lock Included, Wheel Dia. 2 in, Wheel Width 1 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Side Brake, Tread Shape Standard

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
