  11. Plate Caster, 300 lb. Load, Silver Wheel

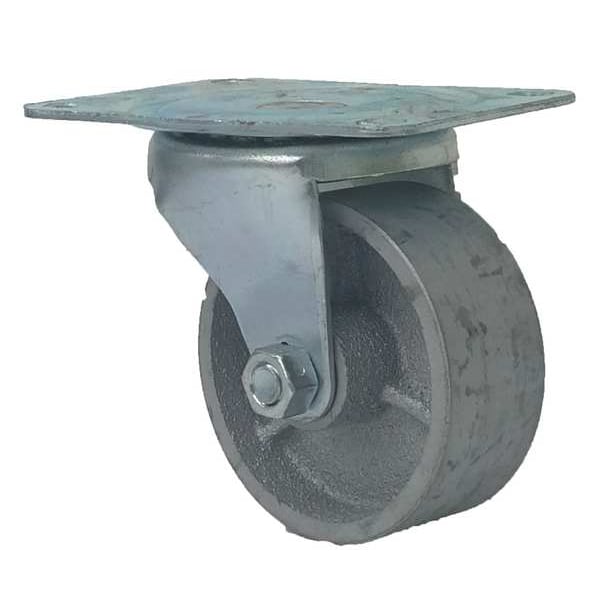

Zoro Select Plate Caster, 300 lb. Load, Silver Wheel P2S-C030G-P - main

Plate Caster, 300 lb. Load, Silver Wheel

  • Mfr # P2S-C030G-P

  • Zoro # G5570597

product price: $9.39
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Cast Iron
Caster Brake Type
No Brake
Wheel Dia.
3 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P2S-C030G-P
Zoro #
G5570597
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
3 in
Wheel Width
1 1/8 in
Mounting Height
3 13/16 in
Mounting Plate Size
3-1/8 in x 4-1/8 in
Mounting Plate Thickness
0.079 in
Mounting Bolt Dia.
5/16 in
Swivel Radius
3-15/16 in
Overall Height
3-3/16in
Mounting Plate Length
3 1/8 in
Outside Slot Spacing - Width
2.375 in
Inside Slot Spacing - Length
3.375 in
For Axle Dia.
5/16 in
Outside Slot Spacing - Length
3.438 in
Overall Wheel Width
1 1/8 in
Inside Slot Spacing - Width
2.375 in

Details

Item
Swivel Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Cast Iron
Caster Brake Type
No Brake
Load Rating
300 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Plain
Wheel/Tread Color
Silver
Wheel Hardness Rating
220 BHN
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
No
Number of Wheels
1
Outside Bolt Hole Spacing
2-3/8 in x 3-7/16 in
Inside Bolt Hole Spacing
2-3/8 in x 3-3/8 in
Caster Plate Hole Pattern
D
Application
Retail, Industrial, Commercial
Caster Temp. Range Available
Yes
Frame Finish
Zinc Plated
Features
Push/Pull Force Reduction
Caster Brake Included
No
Includes
Complete Caster
Thread Guards
No
Standards
RoHS, ICWM
Extended Lead
No
Wheel Color
Silver
Swivel Raceway Type
Single Ball
Swivel Construction
Kingpin
Wheel Core Material
Cast Iron
Swivel Lock Type
No Lock Included
Load Rating Range
Light Duty
Wheel/Tread Hardness Rating
Extra Hard
Includes Thread Guards
No
Load Capacity
210 lb
ESD Conductive
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Tread
Standard
Tread Color
Silver
Series
P2 Series
Load Capacity - Maximum
210 lb
Wheel Core Type
Solid
Mounting Hole Type
Slot
Caster Features
Corrosion-Resistant
For Surface Type
Grease, Metal Scrap, Oil, Rubber, Steel, Wood
Mounting Plate Shape
Rectangle
Operating Temperature - Maximum
800 Degrees F
Operating Temperature Range
Up To 800 Degrees F

Description

Swivel, Plate Caster, Load Rating 300 lb, Swivel Lock Type No Lock Included, Wheel Dia. 3 in, Wheel Width 1 1/8 in, Wheel/Tread Material Iron, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
