  6. Plate Caster, 325 lb. Load, Gray Wheel
Zoro Select Plate Caster, 325 lb. Load, Gray Wheel P12SX-PRP050B-12-WB - main

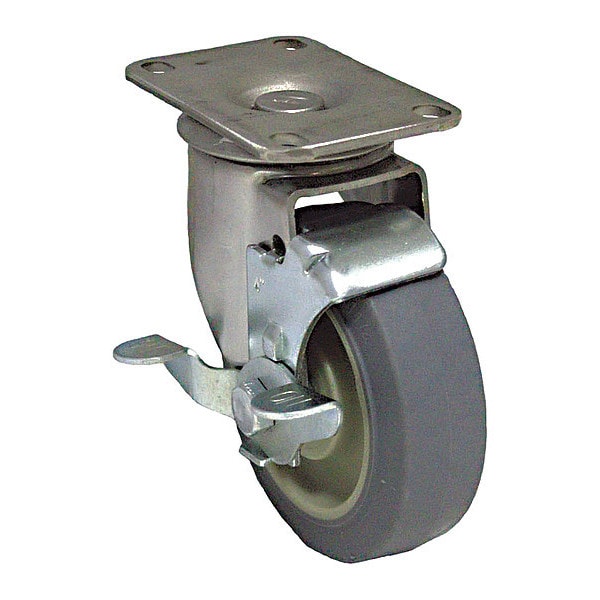

Plate Caster, 325 lb. Load, Gray Wheel

  • Mfr # P12SX-PRP050B-12-WB

  • Zoro # G5569118

product price:  $62.95
/ea

Key Features

Wheel Color
Gray
Extended Lead
No
Non-Marking
Yes
Caster Plate Hole Pattern
C
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
P12SX-PRP050B-12-WB
Zoro #
G5569118
UPC #
-
Country of Origin
China

Dimensions

Overall Height
6-3/16in
Mounting Bolt Dia.
5/16 in
Wheel Width
1 1/4 in
Wheel Dia.
5 in
Swivel Radius
3 7/8 in
Mounting Height
6 3/16 in
Mounting Plate Size
2-1/2in x 3-5/8in
Inside Slot Spacing - Width
1.75 in
Mounting Plate Thickness
1/8in
Inside Slot Spacing - Length
2.813 in
For Axle Dia.
3/8 in
Mounting Plate Length
2 1/2 in
Overall Wheel Width
1 1/4 in
Outside Slot Spacing - Length
3.063 in
Outside Slot Spacing - Width
1.75 in

Details

Wheel Color
Gray
Extended Lead
No
Non-Marking
Yes
Caster Plate Hole Pattern
C
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Caster Sub-Type
Swivel
Thread Guards
Yes
Frame Finish
Polished
Item
Swivel Caster with Brake
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Application
Food Service Racks and Cases, Hotel Equipment, Institutional Equipment, Laundry Trucks, Stock Carts
Core Color
Gray
Includes
Complete Caster with Brake
Caster Temp. Range Available
Yes
Load Rating
325 lb
Caster Frame Material
Stainless Steel
Caster Brake Type
Side Brake
Number of Wheels
1
Features
Corrosion Resistance, Noise Reduction
Caster Brake Included
Yes
Standards
ANSI ICWM, NSF Listed
Replacement Wheel
Mfr. No. P-PRP-050x013/038B
Wheel Core Material
Polypropylene
Wheel Bearing Type
Ball
Swivel Raceway Type
Double Ball
Number of Mounting Holes
4
Wheel/Tread Material
Thermoplastic Rubber
Tread Shape
Standard
Swivel Lock Type
No Lock Included
Wheel/Tread Hardness Rating
Firm
Load Rating Range
Light-Medium Duty
Includes Thread Guards
No
Swivel Construction
Kingpin
Wheel/Tread Color
Gray
System of Measurement
Inch
Load Capacity
325 lb
Caster Mounting Type
Plate
ESD Conductive
No
Tread
Standard
Series
P12X Series
Tread Color
Gray
Resistant To
High Chemical Resistance To Many Aggressive Substances
Caster Features
Corrosion-Resistant, Debris-Resistant
Load Capacity - Maximum
325 lb
Wheel Hardness Rating
90 Shore A
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Bearing Material
Steel
Brake Location
Side
Mounting Hole Type
Slot
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature Range
-20 Degrees to 180 Degrees F

Description

Swivel, Plate Caster, Load Rating 325 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Side Brake, Tread Shape Standard
