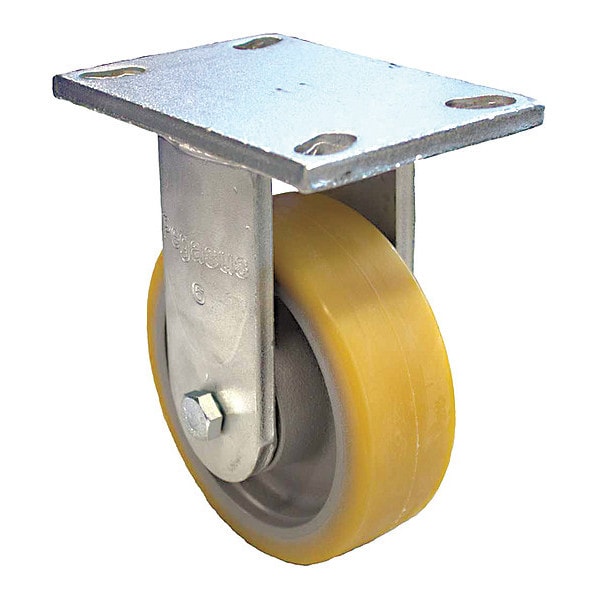

Zoro Select Plate Caster, 3970 lb. Load, Yellow Wheel P27R-GTH 252K-18 - main

Plate Caster, 3970 lb. Load, Yellow Wheel

  • Mfr # P27R-GTH 252K-18

  • Zoro # G5550120

product price:  $331.99
/ea
Free Shipping & Returns

Key Features

Overall Height
10-1/8in
Core Color
Gray
Includes
Complete Caster
Caster Brake Included
No
Caster Temp. Range Available
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P27R-GTH 252K-18
Zoro #
G5550120
UPC #
-
Country of Origin
China

Dimensions

Overall Height
10-1/8in
Mounting Bolt Dia.
1/2 in
Wheel Dia.
10 in
Wheel Width
3 1/8 in
Mounting Height
11 7/16 in
Mounting Plate Size
5-1/4in x 7-1/4in
Inside Slot Spacing - Width
3.375 in
Mounting Plate Thickness
5/16in
Inside Slot Spacing - Length
5.25 in
Outside Slot Spacing - Width
4.125 in
Overall Wheel Width
3 1/8 in
Mounting Plate Length
5 1/4 in
Outside Slot Spacing - Length
6.125 in
For Axle Dia.
3/4 in

Details

Core Color
Gray
Includes
Complete Caster
Caster Brake Included
No
Caster Temp. Range Available
Yes
Wheel Color
Yellow
Outside Bolt Hole Spacing
4-1/8 in x 6-1/8 in
Features
Floor Protective
Load Rating
3950 lb
Non-Marking
Yes
Extended Lead
No
Number of Wheels
1
Caster Frame Material
Steel
Replacement Wheel
Mfr. No. GTH 252/25K
Frame Finish
Zinc Plated
Caster Brake Type
No Brake
Standards
ANSI ICWM
Thread Guards
No
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Caster Plate Hole Pattern
A
Inside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Caster Sub-Type
Rigid
Item
Rigid Caster
Number of Mounting Holes
4
Wheel/Tread Hardness Rating
Firm
Wheel Core Material
Cast Iron
Includes Thread Guards
No
Load Rating Range
Heavy-Duty
Wheel Bearing Type
Ball
Tread Shape
Standard
Swivel Lock Type
No Lock Included
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Yellow
System of Measurement
Inch
Resistant To
High Chemical Resistance To Many Aggressive Substances
ESD Conductive
No
Tread
Standard
Load Capacity
3968 lb
Series
P27 Series
Tread Color
Light Brown
Caster Mounting Type
Plate
Compatible With
GTH 252/25K
Wheel Hardness Rating
92 Shore A
Load Capacity - Maximum
3,970 lb
Mounting Plate Shape
Rectangle
Mounting Hole Type
Slot
Wheel Bearing Material
Steel
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Wheel Core Type
Solid
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Operating Temperature Range
-40 Degrees to 180 Degrees F
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-40 Degrees F

Description

Rigid, Plate Caster, Load Rating 3950 lb, Swivel Lock Type No Lock Included, Wheel Dia. 10 in, Wheel Width 3 1/8 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
