  6. Plate Caster, 350 lb. Load, Gray Wheel

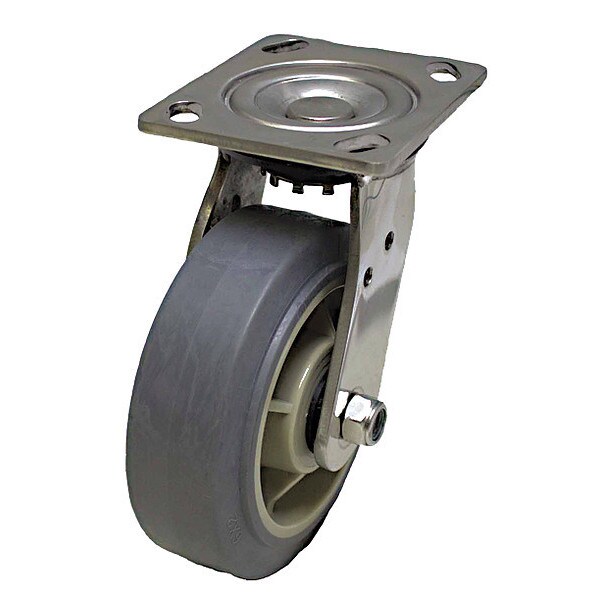

Zoro Select Plate Caster, 350 lb. Load, Gray Wheel P21SX-PRP050D-14 - main

Plate Caster, 350 lb. Load, Gray Wheel

  • Mfr # P21SX-PRP050D-14

  • Zoro # G5944290

product price:  $78.99
/ea
Free Shipping & Returns

Key Features

Overall Height
6-1/2in
Swivel Construction
Kingpin
Swivel Lock Type
No Lock Included
Wheel Core Material
Polypropylene
Wheel Bearing Type
Delrin
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P21SX-PRP050D-14
Zoro #
G5944290
UPC #
-
Country of Origin
China

Dimensions

Overall Height
6-1/2in
Mounting Plate Size
4in x 4-1/2in
Mounting Height
6 1/2 in
Swivel Radius
4 1/4 in
Mounting Bolt Dia.
3/8 in
Wheel Dia.
5 in
Wheel Width
2 in
Outside Slot Spacing - Length
3.625 in
Bolt Hole Spacing - Length
2.625 in
Mounting Plate Length
4 1/2 in
Inside Slot Spacing - Width
2.625 in
Mounting Plate Width
4 in
Overall Wheel Width
2 in
Inside Slot Spacing - Length
3 in
Outside Slot Spacing - Width
3 in
Mounting Plate Thickness
15/64in
For Axle Dia.
1/2 in

Details

Swivel Construction
Kingpin
Swivel Lock Type
No Lock Included
Wheel Core Material
Polypropylene
Wheel Bearing Type
Delrin
Wheel/Tread Hardness Rating
Firm
Includes Thread Guards
No
Swivel Raceway Type
Double Ball
Tread Shape
Standard
Load Rating Range
Light-Medium Duty
Number of Mounting Holes
4
Wheel/Tread Material
Thermoplastic Rubber
Wheel/Tread Color
Gray
Tread
Standard
Accessories
Optional: P-DL21X-14 (Directional Lock)
Load Capacity
350 lb
Inside Bolt Hole Spacing
3 in x 3 in
Replacement Wheel
Blickle Series
Caster Frame Material
Stainless Steel
Caster Mounting Type
Plate
System of Measurement
Inch
Caster Temp. Range Available
Yes
Application
Dollies, Food Service, Hospital Beds, Hospitality, Hotel Luggage Carts, Institutional, Laundry Trucks, Pharmaceuticals, Stock Carts
Wheel Color
Gray
Includes
Complete Caster
Core Color
Gray
Caster Plate Hole Pattern
B
Load Rating
350 lb
Features
Corrosion Resistance, Floor Protective, Noise Reduction
Caster Brake Included
No
Thread Guards
No
Series
P21X Series
ESD Conductive
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Extended Lead
No
Frame Finish
Polished
Tread Color
Gray
Caster Brake Type
No Brake
Caster Sub-Type
Swivel
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Standards
ANSI ICWM
Number of Wheels
1
Non-Marking
Yes
Item
Swivel Caster
Caster Features
Corrosion-Resistant, Debris-Resistant
Compatible With
Blickle Series
Load Capacity - Maximum
350 lb
Wheel Hardness Rating
90 Shore A
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
Wheel Bearing Material
Delrin
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Core Type
Solid
Operating Temperature - Maximum
180 Degrees F
Operating Temperature Range
-4 Degrees To 140 Degrees F
Operating Temperature - Minimum
-40 Degrees F

Description

Swivel, Plate Caster, Load Rating 350 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 2 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
