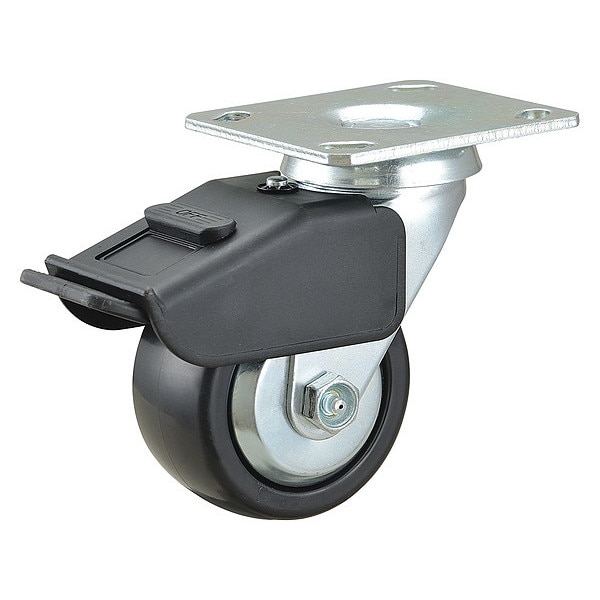

Plate Caster, 4" Wheel Dia., 600 lb., Black

  • Mfr # 435Y01
  • Zoro # G6872658
product price:
$
24.49
/ea

Key Features

Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Wheel Color
Black
Inside Bolt Hole Spacing
3 in x 3 in
Non-Marking
Yes
Thread Guards
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
435Y01
Zoro #
G6872658
UPC #
-
Country of Origin
China

Dimensions

Stem Dia.
No Stem
Overall Height
5-5/8"
Swivel Radius
5 17/32 in
Wheel Dia.
4 in
Mounting Bolt Dia.
3/8 in
Wheel Width
2 in
Mounting Plate Size
4 in x 4 1/2 in
Mounting Height
5 5/8 in
Mounting Plate Thickness
7/32in

Details

Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Wheel Color
Black
Inside Bolt Hole Spacing
3 in x 3 in
Non-Marking
Yes
Thread Guards
Yes
Standards
ANSI, ANSI ICWM
Caster Sub-Type
Swivel
Caster Brake Included
Yes
Frame Finish
Zinc Plated
Item
Plate Caster
Caster Temp. Range Available
No
Core Color
Black
Caster Brake Type
Total Lock
Load Rating
600 lb
Caster Plate Hole Pattern
B
Caster Frame Material
Steel
Caster Stem Type
No Stem/Plate Included
Extended Lead
No
Number of Wheels
1
Application
General Purpose
Tread Shape
Standard
Swivel Construction
Kingpin
Wheel Bearing Type
Roller
Number of Mounting Holes
4
Load Rating Range
300 to 999 lb
Includes Thread Guards
Yes
Swivel Raceway Type
Double Ball
Wheel Core Material
Polyolefin
Wheel/Tread Hardness Rating
Hard
Swivel Lock Type
2-Position Directional Lock
Wheel/Tread Material
Polyolefin
Wheel/Tread Color
Black
Load Capacity - Maximum
600 lb
Wheel Hardness Rating
65 Shore D
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-20 Degrees F

Description

Swivel, Plate Caster, Load Rating 600 lb, Swivel Lock Type 2-Position Directional Lock, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Polyolefin, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
