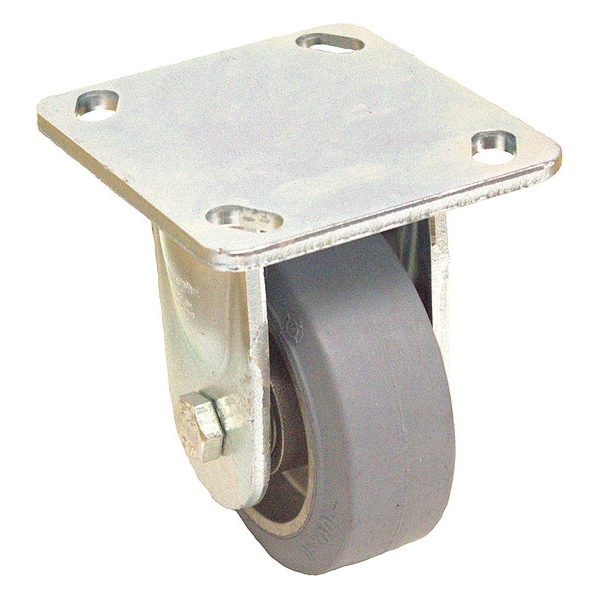

Zoro Select Plate Caster, 440 lb. Load Rating, Rigid BKS-ALEV 100K-14-SG - main

Plate Caster, 440 lb. Load Rating, Rigid

  • Mfr # BKS-ALEV 100K-14-SG

  • Zoro # G6622782

product price:  $56.19
/ea

Key Features

Load Rating
440 lb
Number of Wheels
1
Caster Sub-Type
Rigid
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Overall Height
5-1/8in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
BKS-ALEV 100K-14-SG
Zoro #
G6622782
UPC #
-
Country of Origin
Germany

Dimensions

Overall Height
5-1/8in
Swivel Radius
None- Rigid Caster
Wheel Width
1 5/8 in
Mounting Bolt Dia.
3/8 in
Wheel Dia.
10 in
Mounting Plate Size
4 in x 4-1/2 in
Mounting Height
5 1/8 in
Outside Slot Spacing - Width
3 in
For Axle Dia.
10 mm
Mounting Plate Thickness
0.217 in
Overall Wheel Width
1 5/8 in
Outside Slot Spacing - Length
3.625 in
Mounting Plate Length
4 in
Inside Slot Spacing - Width
2.625 in
Inside Slot Spacing - Length
3 in

Details

Load Rating
440 lb
Number of Wheels
1
Caster Sub-Type
Rigid
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Thread Guards
No
Core Color
Silver
Wheel Color
Black
Caster Plate Hole Pattern
B
Caster Brake Included
No
Caster Temp. Range Available
Yes
Frame Finish
Zinc Plated
Item
Rigid Caster
Caster Frame Material
Steel
Application
Dollies, Floor Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Inside Bolt Hole Spacing
3 in x 3 in
Extended Lead
No
Features
Floor Protective, Noise Reduction
Non-Marking
Yes
Standards
DIN EN 12530, ANSI ICWM
Caster Brake Type
No Brake
Replacement Wheel
Mfr. No. ALEV 100/15K-SG
Wheel/Tread Hardness Rating
Soft
Swivel Lock Type
No Lock Included
Number of Mounting Holes
4
Load Rating Range
Medium Duty
Wheel Core Material
Aluminum
Includes Thread Guards
No
Wheel Bearing Type
Precision Ball
Operating Temperature Range
-15 Degrees To 175 Degrees F
Tread Shape
Standard
Wheel/Tread Material
EasyRoll Elastic Solid Rubber
Wheel/Tread Color
Black
System of Measurement
Inch
ESD Conductive
No
Caster Mounting Type
Plate
Load Capacity
440 lb
Series
BKS Series
Resistant To
High Chemical Resistance To Many Aggressive Substances, Except Oils
Tread
Standard
Tread Color
Gray
Wheel Hardness Rating
65 Shore A
Load Capacity - Maximum
440 lb
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel
Wheel Core Type
Solid
Wheel Bearing Material
Steel
Operating Temperature - Minimum
-15 Degrees F
Operating Temperature - Maximum
160 Degrees F

Description

Rigid, Plate Caster, Load Rating 440 lb, Swivel Lock Type No Lock Included, Wheel Dia. 10 in, Wheel Width 1 5/8 in, Wheel/Tread Material Rubber, Wheel Core Material Aluminum, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
