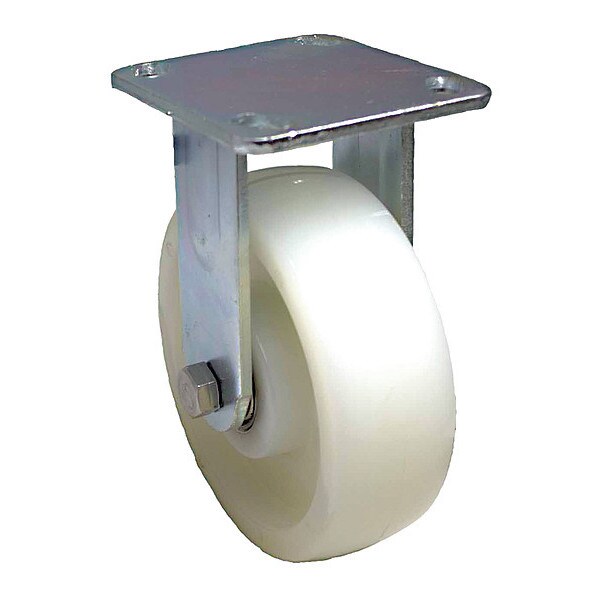

Zoro Select Plate Caster, 500 lb. Load, White Wheel P21R-N050K-14 - main

Plate Caster, 500 lb. Load, White Wheel

  • Mfr # P21R-N050K-14

  • Zoro # G5633929

product price:  $36.59
/ea

Key Features

Core Color
White
Mounting Bolt Dia.
3/8 in
Extended Lead
No
Caster Brake Included
No
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
P21R-N050K-14
Zoro #
G5633929
UPC #
-
Country of Origin
China

Dimensions

Mounting Bolt Dia.
3/8 in
Wheel Width
2 in
Wheel Dia.
5 in
Overall Height
6-1/2in
Swivel Radius
None- Rigid Caster
Mounting Plate Size
4 in x 4-1/2 in
Mounting Height
6 1/2 in
Mounting Plate Thickness
0.236 in
Mounting Plate Width
4 in
Inside Slot Spacing - Width
2.625 in
Inside Slot Spacing - Length
3 in
Outside Slot Spacing - Width
3 in
Outside Slot Spacing - Length
3.625 in
Overall Wheel Width
2 in
For Axle Dia.
1/2 in
Bolt Hole Spacing - Length
2.625 in
Mounting Plate Length
4 1/2 in

Details

Core Color
White
Extended Lead
No
Caster Brake Included
No
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Replacement Wheel
Blickle Series
Standards
ANSI ICWM
Load Rating
500 lb
Non-Marking
Yes
Features
Cleanroom Compatible, Push/Pull Force Reduction
Wheel Color
White
Caster Frame Material
Steel
Application
Dollies, Floor Trucks, Shop Carts, Waste Disposal Trucks
Item
Rigid Caster
Thread Guards
No
Caster Temp. Range Available
Yes
Caster Sub-Type
Rigid
Caster Brake Type
No Brake
Caster Plate Hole Pattern
B
Inside Bolt Hole Spacing
3 in x 3 in
Number of Wheels
1
Frame Finish
Zinc Plated
Includes
Complete Caster
Wheel Bearing Type
Precision Ball
Includes Thread Guards
No
Swivel Lock Type
No Lock Included
Wheel/Tread Hardness Rating
Hard
Load Rating Range
Medium Duty
Tread Shape
Standard
Wheel Core Material
Nylon
Number of Mounting Holes
4
Wheel/Tread Material
Nylon
Wheel/Tread Color
White
System of Measurement
Inch
Load Capacity
500 lb
Caster Mounting Type
Plate
Tread
Standard
Resistant To
High Chemical Resistance To Many Aggressive Substances
Tread Color
White
Series
P21 Series
ESD Conductive
No
Wheel Hardness Rating
75 Shore D
Load Capacity - Maximum
500 lb
Compatible With
Blickle Series
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Core Type
Solid
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
Wheel Bearing Material
Steel
Caster Features
Corrosion-Resistant
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature Range
-20 Degrees To 250 Degrees F
Operating Temperature - Maximum
250 Degrees F

Description

Rigid, Plate Caster, Load Rating 500 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 2 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
