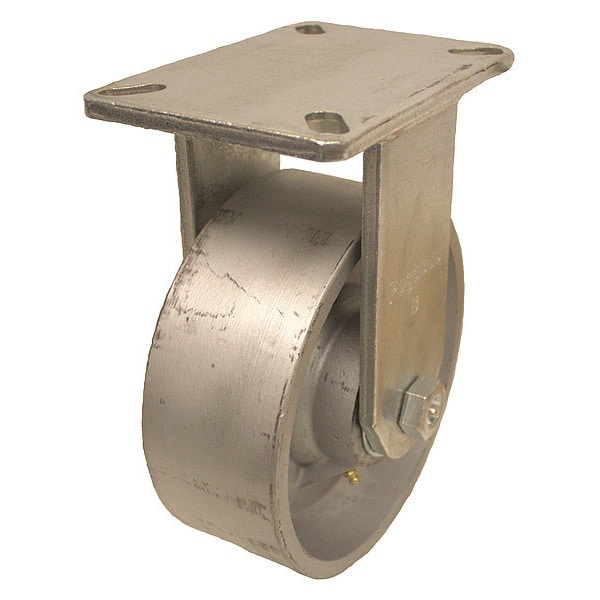

Plate Caster, 5400 lb. Ld Rating, Gy Wheel

  • Mfr # P27R-D080R-18
  • Zoro # G6531478
product price:
$
190.99
/ea
Free Shipping & Returns

Key Features

Swivel Radius
None- Rigid Caster
Caster Plate Hole Pattern
A
Wheel Width
3 in
Wheel Color
Gray
Load Rating
5400 lb
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
P27R-D080R-18
Zoro #
G6531478
UPC #
-
Country of Origin
China
Caster Plate Hole Pattern
A
Wheel Color
Gray
Load Rating
5400 lb
Item
Plate Caster
Includes
Complete Caster
Extended Lead
No
Core Color
Gray
Application
Bakery Racks, Conveyor Drawn Tow Trucks, Dough Troughs, Production Dollies
Standards
ANSI ICWM
Caster Brake Included
No
Caster Brake Type
No Brake
Number of Wheels
1
Features
Push/Pull Force Reduction
Inside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Caster Sub-Type
Rigid
Thread Guards
No
Caster Temp. Range Available
Yes
Non-Marking
Yes
Frame Finish
Zinc Plated
Outside Bolt Hole Spacing
4-1/8 in x 6-1/8 in
Replacement Wheel
Mfr. No. P-D-080x030/075R
Caster Frame Material
Steel
Swivel Lock Type
No Lock Included
Includes Thread Guards
No
Wheel/Tread Hardness Rating
Extra Hard
Wheel Core Material
Iron
Tread Shape
Standard
Number of Mounting Holes
4
Operating Temperature Range
Up To 800 Degrees F
Load Rating Range
Heavy Duty
Wheel Bearing Type
Roller
Wheel/Tread Material
Iron
Wheel/Tread Color
Gray
System of Measurement
Inch
Caster Mounting Type
Plate
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity
6000 lb
Tread Color
Black
ESD Conductive
No
Tread
Standard
Series
P27 Series
Load Capacity - Maximum
5,400 lb
For Surface Type
Grease, Metal Scrap, Oil, Rubber, Steel, Wood
Wheel Core Type
Solid
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
Wheel Bearing Material
Steel
Wheel Hardness Rating
145 HB
Caster Features
Corrosion-Resistant

Dimensions

Swivel Radius
None- Rigid Caster
Wheel Width
3 in
Wheel Dia.
8 in
Overall Height
10-1/2"
Mounting Bolt Dia.
1/2 in
Mounting Plate Size
5-1/4 in x 7-1/4 in
Mounting Height
10 1/2 in
Mounting Plate Width
5 1/4 in
Overall Wheel Width
3 in
Mounting Plate Length
7 1/4 in
For Axle Dia.
3/4 in
Outside Slot Spacing - Length
6.125 in
Outside Slot Spacing - Width
4.125 in
Inside Slot Spacing - Length
5.25 in
Bolt Hole Spacing - Length
3.375 in
Inside Slot Spacing - Width
3.375 in
Mounting Plate Thickness
3/8 in
Fits Chest Size
Push/Pull Force Reduction

Description

Rigid, Plate Caster, Load Rating 5400 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 3 in, Wheel/Tread Material Iron, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
