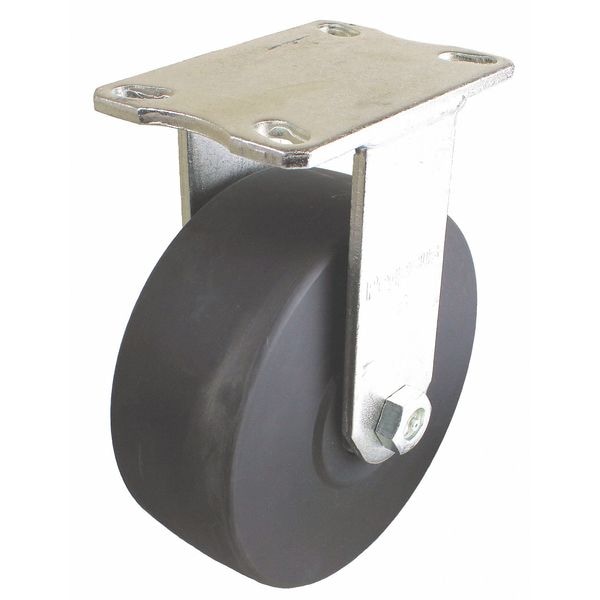

Plate Caster, 5400 lb. Load Rate, 8" H

  • Mfr # P27R-NMB060K-18

  • Zoro # G3339189

product price:
$
179.99
/ea
Free Shipping & Returns

Key Features

Application
Bakery Racks, Conveyor Drawn Tow Trucks, Dough Troughs, Production Dollies
Caster Sub-Type
Rigid
Mounting Bolt Dia.
1/2 in
Number of Wheels
1
Caster Frame Material
Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P27R-NMB060K-18
Zoro #
G3339189
UPC #
-
Country of Origin
China

Dimensions

Mounting Bolt Dia.
1/2 in
Wheel Dia.
6 in
Overall Height
8"
Wheel Width
3 in
Mounting Plate Size
5-1/4 in x 7-1/4 in
Mounting Height
8 in
Inside Slot Spacing - Width
3.375 in
Mounting Plate Length
7 1/4 in
Outside Slot Spacing - Length
6.125 in
Overall Wheel Width
3 in
Mounting Plate Thickness
3/8 in
Mounting Plate Width
5 1/4 in
Outside Slot Spacing - Width
4.125 in
Inside Slot Spacing - Length
5.25 in
For Axle Dia.
3/4 in
Bolt Hole Spacing - Length
3.375 in

Details

Application
Bakery Racks, Conveyor Drawn Tow Trucks, Dough Troughs, Production Dollies
Caster Sub-Type
Rigid
Number of Wheels
1
Item
Plate Caster
Caster Frame Material
Steel
Core Color
Black
Thread Guards
No
Frame Finish
Zinc Plated
Inside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Wheel Color
Black
Load Rating
4100 lb
Caster Brake Included
No
Outside Bolt Hole Spacing
4-1/8 in x 6-1/8 in
Caster Plate Hole Pattern
A
Caster Brake Type
No Brake
Includes
Complete Caster
Replacement Wheel
440A64
Standards
ANSI ICWM
Non-Marking
Yes
Caster Temp. Range Available
Yes
Extended Lead
No
Includes Thread Guards
No
Wheel Core Material
Nylon
Wheel Bearing Type
Ball
Wheel/Tread Hardness Rating
Hard
Number of Mounting Holes
4
Tread Shape
Standard
Swivel Lock Type
No Lock Included
Load Rating Range
Heavy Duty
Wheel/Tread Material
Nylon
Wheel/Tread Color
Black
System of Measurement
Inch
Caster Mounting Type
Plate
Load Capacity
4100 lb
Series
P27 Series
Tread
Standard
Tread Color
Black
ESD Conductive
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity - Maximum
5,400 lb
Wheel Hardness Rating
80 Shore D
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Hole Type
Slot
Caster Features
Corrosion-Resistant
Wheel Core Type
Solid
Wheel Bearing Material
Steel
Mounting Plate Shape
Rectangle
Operating Temperature Range
-20 Degrees To 250 Degrees F
Operating Temperature - Minimum
-30 Degrees F
Operating Temperature - Maximum
220 Degrees F

Description

Rigid, Plate Caster, Load Rating 4100 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 3 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
