Shop All Plate Casters
Zoro Select

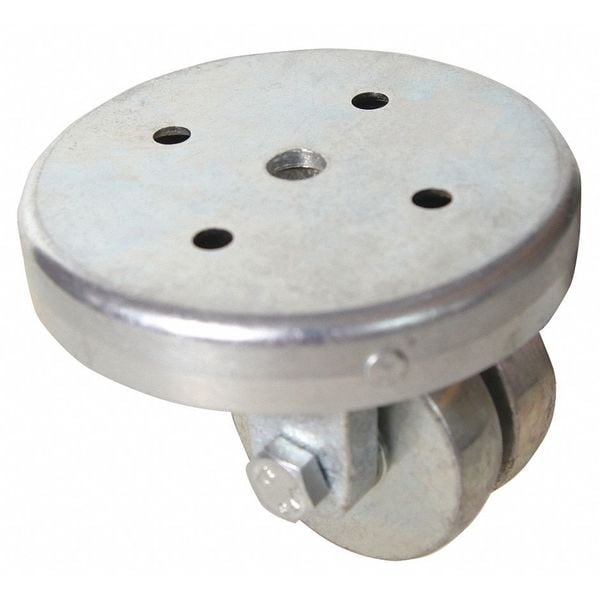

Plate Caster, 590 lb., Light-Medium Duty

product price: $29.35
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Brake Included No
  • Caster Load Rating Range Light-Medium Duty
  • Caster Sub-Type Swivel
  • Caster Wheel Shape Crown
  • Caster Wheel/Tread Material Steel
See all product information

Product Information

Dimensions

Overall Height 2-1/2"
Wheel Dia. 2 in
Wheel Width 5/8 in
Stem Dia. No Stem
Caster Plate Size 3-47/64" x 3-47/64"
Mounting Bolt Dia. 1/4 in
Swivel Radius 1 23/32 in
Mounting Plate Size 3 3/4 in
Mounting Height 2 1/2 in

Details

Caster Brake Included No
Caster Load Rating Range Light-Medium Duty
Caster Sub-Type Swivel
Caster Wheel Shape Crown
Caster Wheel/Tread Material Steel
Load Rating 590 lb
Number of Wheels 2
Caster Stem Type No Stem/Plate Included
Wheel Color Silver
Plate Thickness 5/8"
Outside Bolt Hole Spacing 2 in x 2 in
Caster Product Group Swivel Caster
Caster Plate Hole Pattern G
Item Low-Profile Easy-Turn Standard Plate Caster
Caster Temp. Range Available Yes
Non-Marking Yes
Inside Bolt Hole Spacing 2 in x 2 in
Extended Lead No
Caster Wheel Bearings Plain
Caster Min. Temp. -20 Degrees F
Caster Plate Thickness 5/8"
Caster Temp. Range -22 Degrees to 248 Degrees F
Caster Core Material Forged Steel
Thread Guards No
Standards ICWM
Caster Raceway Single Ball
Plate Caster Bolt Hole Pattern G
Caster Frame Material Steel
Core Color Silver
Caster Max. Temp. 245 Degrees F
Caster Swivel Lock Type No Lock Included
Frame Finish Zinc Plated
Durometer 140 BHN
Application General Purpose
Frame Material Steel
Caster Brake Type No Brake Included
Swivel Lock Type No Lock Included
Load Rating Range 300 to 999 lb
Swivel Construction Kingpinless
Wheel/Tread Hardness 140 BHN
Tread Shape Standard
Wheel/Tread Hardness Rating Extra Hard
Number of Mounting Holes 4
Wheel Bearing Type Plain
Mounting Plate Bolt Hole Pattern G
Swivel Raceway Type Single Ball
Includes Thread Guards No
Wheel Core Material Forged Steel
Wheel/Tread Material Steel
Wheel/Tread Color Silver

Description

Swivel, Low-Profile Easy-Turn Standard Plate Caster, Load Rating 590 lb, Swivel Lock Type No Lock Included, Wheel Dia. 2 in, Wheel Width 5/8 in, Wheel/Tread Material Steel, Wheel Core Material Forged Steel, Non-Marking Yes, Number of Wheels 2, Caster Brake Type No Brake Included, Tread Shape Standard
