  6. Plate Caster, 6" Wheel Dia, 325 lb., Swivel
Zoro Select Plate Caster, 6" Wheel Dia, 325 lb., Swivel 406P67 - main

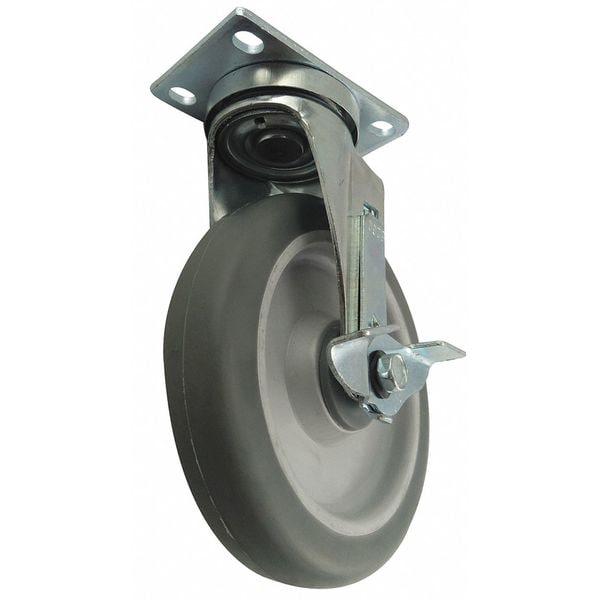

Plate Caster, 6" Wheel Dia, 325 lb., Swivel

  • Mfr # 406P67

  • Zoro # G5590002

product price:  $27.39
/ea

Key Features

Wheel Color
Gray
Non-Marking
Yes
Caster Sub-Type
Swivel
Application
Food Service, Hospital Equipment, Institutional Equipment, Office Equipment, Store Fixtures, Utility Carts
Caster Plate Hole Pattern
C
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
406P67
Zoro #
G5590002
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
1 1/4 in
Swivel Radius
4 1/4 in
Mounting Bolt Dia.
5/16 in
Overall Height
7-1/4in
Wheel Dia.
6 in
Mounting Height
7 5/16 in
Mounting Plate Size
2 1/2 in x 3 3/4 in
Mounting Plate Thickness
5/32in

Details

Wheel Color
Gray
Non-Marking
Yes
Caster Sub-Type
Swivel
Application
Food Service, Hospital Equipment, Institutional Equipment, Office Equipment, Store Fixtures, Utility Carts
Caster Plate Hole Pattern
C
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Frame Finish
Zinc Plated
Extended Lead
Yes
Caster Brake Type
Side Brake
Item
Plate Caster
Caster Temp. Range Available
Yes
Number of Wheels
1
Core Color
Gray
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Thread Guards
Yes
Load Rating
325 lb
Caster Frame Material
Steel
Caster Brake Included
Yes
Standards
ANSI ICWM
Swivel Construction
Kingpin
Swivel Lock Type
No Lock Included
Wheel Core Material
Polyolefin
Swivel Raceway Type
Double Ball
Load Rating Range
300 to 999 lb
Wheel Bearing Type
Ball
Wheel/Tread Hardness Rating
Soft
Number of Mounting Holes
4
Includes Thread Guards
Yes
Tread Shape
Standard
Wheel/Tread Material
Rubber
Wheel/Tread Color
Gray
Load Capacity - Maximum
325 lb
Wheel Hardness Rating
65 Shore A
Operating Temperature Range
-40 Degrees to 180 Degrees F
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-40 Degrees F

Description

Swivel, Plate Caster, Load Rating 325 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Side Brake, Tread Shape Standard
