Shop ZORO SELECT

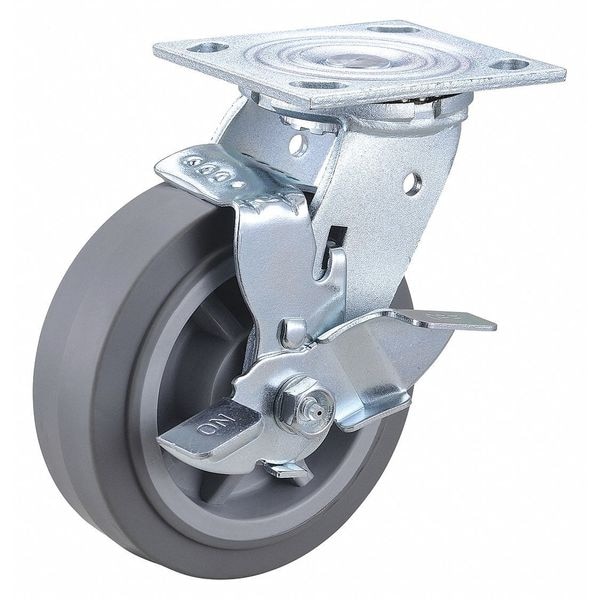

Plate Caster, 6" Wheel Dia., 450 lb., Gray

  • Mfr # 435X91

  • Zoro # G5624628

product price:
$
28.45
/ea

Key Features

Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Temp. Range Available
No
Thread Guards
No
Caster Brake Type
Side Brake
Core Color
Gray
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
435X91
Zoro #
G5624628
UPC #
-
Country of Origin
China

Dimensions

Overall Height
7-1/2"
Wheel Width
2 in
Wheel Dia.
6 in
Mounting Bolt Dia.
3/8 in
Swivel Radius
5 in
Mounting Plate Size
4 in x 4 1/2 in
Mounting Height
7 1/2 in
Mounting Plate Thickness
7/32in

Details

Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Temp. Range Available
No
Thread Guards
No
Caster Brake Type
Side Brake
Core Color
Gray
Number of Wheels
1
Load Rating
450 lb
Frame Finish
Zinc Plated
Caster Brake Included
Yes
Item
Plate Caster
Caster Sub-Type
Swivel
Inside Bolt Hole Spacing
3 in x 3 in
Standards
ANSI, ANSI ICWM
Application
General Purpose
Wheel Color
Gray
Caster Frame Material
Steel
Caster Plate Hole Pattern
B
Extended Lead
No
Non-Marking
Yes
Number of Mounting Holes
4
Includes Thread Guards
No
Wheel/Tread Hardness Rating
Soft
Tread Shape
Standard
Load Rating Range
300 to 999 lb
Swivel Raceway Type
Double Ball
Swivel Construction
Kingpin
Wheel Core Material
Polyolefin
Swivel Lock Type
No Lock Included
Wheel Bearing Type
Roller
Wheel/Tread Material
Rubber
Wheel/Tread Color
Gray
System of Measurement
Inch
Load Capacity - Maximum
450 lb
Wheel Hardness Rating
75 Shore A
Operating Temperature - Maximum
175 Degrees F
Operating Temperature Range
-40 Degrees to 175 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Caster Mounting Type
Plate

Description

Swivel, Plate Caster, Load Rating 450 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Side Brake, Tread Shape Standard
